Exhibit 99.1

Select Surface Samples Up to 44.5% TREO at Shiloh; Drill Results Highlight Laterally Extensive Monazite-Bearing Sands System Potential

Manchester, Georgia — June 15, 2026 -- Rare Earths Americas, Inc. ("REA" or the "Company"), is pleased to announce the drilling results for Shiloh through the first quarter of 2026 (Figure 1). The exploration drilling program has continued on the subject properties comprising multiple drilling methods across several target areas. The recent drilling and surface sampling at the Shiloh Project have identified zones of monazite-bearing sands and localized high-grade rare earth element (“REE”) mineralization. These results support continued evaluation of the project’s exploration potential and provide guidance for ongoing and future drill programs.

In addition, the Company received assay results for all 13 of the rock chip surface samples taken across the Newbill and Pipeline properties at Shiloh (Table 1a/b), showing grades up to 44.5% total rare earths oxide (“TREO”). These results are another indicator showing the potential for a monazite-bearing sands system at Shiloh. Selected samples returned high TREO concentrations relative to commonly reported rare earths exploration results; however, these results are from selective samples and may not be representative of broader mineralization.

Laterally extensive monazite-bearing sands systems typically offer several advantages, including the ability to extract near-surface, free-dig material and utilize conventional mineral beneficiation processes; however, the applicability of these characteristics to the Shiloh Project has not yet been established and will require further technical evaluation. These characteristics may be favorable for future technical evaluation, subject to further study.

In 2026, REA plans to complete more than 20,000 meters (m) of drilling using sonic, direct push, and diamond methods to further define and expand the monazite sands potential at Shiloh. The 2026 exploration program will focus on establishing the continuity, scale, and grade distribution of REE mineralization across the district to support ongoing evaluation of the project and assess the potential for future mineral resource delineation.

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Assay highlights from the drill program include:

Lazer Creek: Assays for the holes drilled through the first quarter of 2026 have been received. The initial results show that mineralization was encountered across multiple drilling locations, indicating lateral continuity that remains open to further evaluation (Figure 2).

Highlights include:

•

25-DPLC-015 with 10.84% TREO from 6.1-6.77m and 3.52% TREO from 7.35-8.63m deep

•

25-DPLC-013 with 1.88% TREO from 5.88-11.16m deep

•

25-DPLC-022 and 25-DPLC-023 with 2.02% and 1.35% TREO respectively, from surface to at least 11m deep

Additional drilling is required to determine the extent, geometry, and consistency of this mineralization. A drone-based radiometric survey of the Lazer Creek property also revealed additional targets along-strike.

Pig Trail: Assays for the holes drilled through the first quarter of 2026 have been received (Figure 3). The initial results show rare earth enrichment disseminated across the district.

Highlights Include (Appendix A):

•

26-DPPT-013 with 6.38% TREO from 6.89m to end of hole 7.01m

•

26-DPPTN-001 and 26-DPPTN-007 with 0.83% and 0.53% TREO respectively, from at least 1m deep to over 3m deep

Newbill & Pipeline: Assays for the holes drilled through the first quarter of 2026 have been received across both properties. Initial results indicate rare earth enrichment likewise distributed across the target area.

Additionally, high grade range TREO samples are reported across the properties, with grades above laboratory detection limits (Table 1a/b). A total of 13 rock chip surface samples taken across Newbill and Pipeline showed grades ranging from 17% to 44.5% TREO (Table 1a/b).

Highlights include (Appendix A):

•

26-DPPLE-021 and 26-DPPLE-043 with 1.96% and 1.89% TREO respectively, from at least 1.5m to 7.3m deep

•

25-DPPL-003 and 25-DPNB-123 with 1.74% and 0.79% TREO from surface to end

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

of hole (1.52m and 1.98m respectively)

•

25-DPNB-128 with 1.02% TREO from 1.77m to 3.96m deep

The Shiloh Project is at an exploration stage. No mineral resource or mineral reserve has been estimated for the Shiloh Project, and there is no guarantee that further exploration will result in the delineation of a mineral resource. The results presented herein represent exploration data and are insufficient to define a mineral resource. Additional drilling, sampling, and technical studies are required to evaluate the potential for mineral resource estimation.

Next Steps: Rare Earths Americas will continue its comprehensive drilling campaign at the Shiloh District aimed at exploring both the scale and continuity of the monazite-hosted rare earth mineralization. The Company plans to complete more than 9,000m of diamond, sonic, and direct push drilling over the next three months, targeting both the expansion of known mineralized zones and step-out areas to test district-scale potential. For all of 2026, the Company expects to drill over 20,000m at Shiloh. This exploration work is designed to better constrain the geometry, thickness, and lateral continuity of monazite-bearing horizons, and is intended to generate data to support evaluation of a future initial mineral resource estimate. Concurrently, REA will undertake regional geophysical surveys and systematic soil sampling to refine its geological model and generate new high-priority drill targets across the broader district. These exploration programs are intended to identify additional zones of mineralization.

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

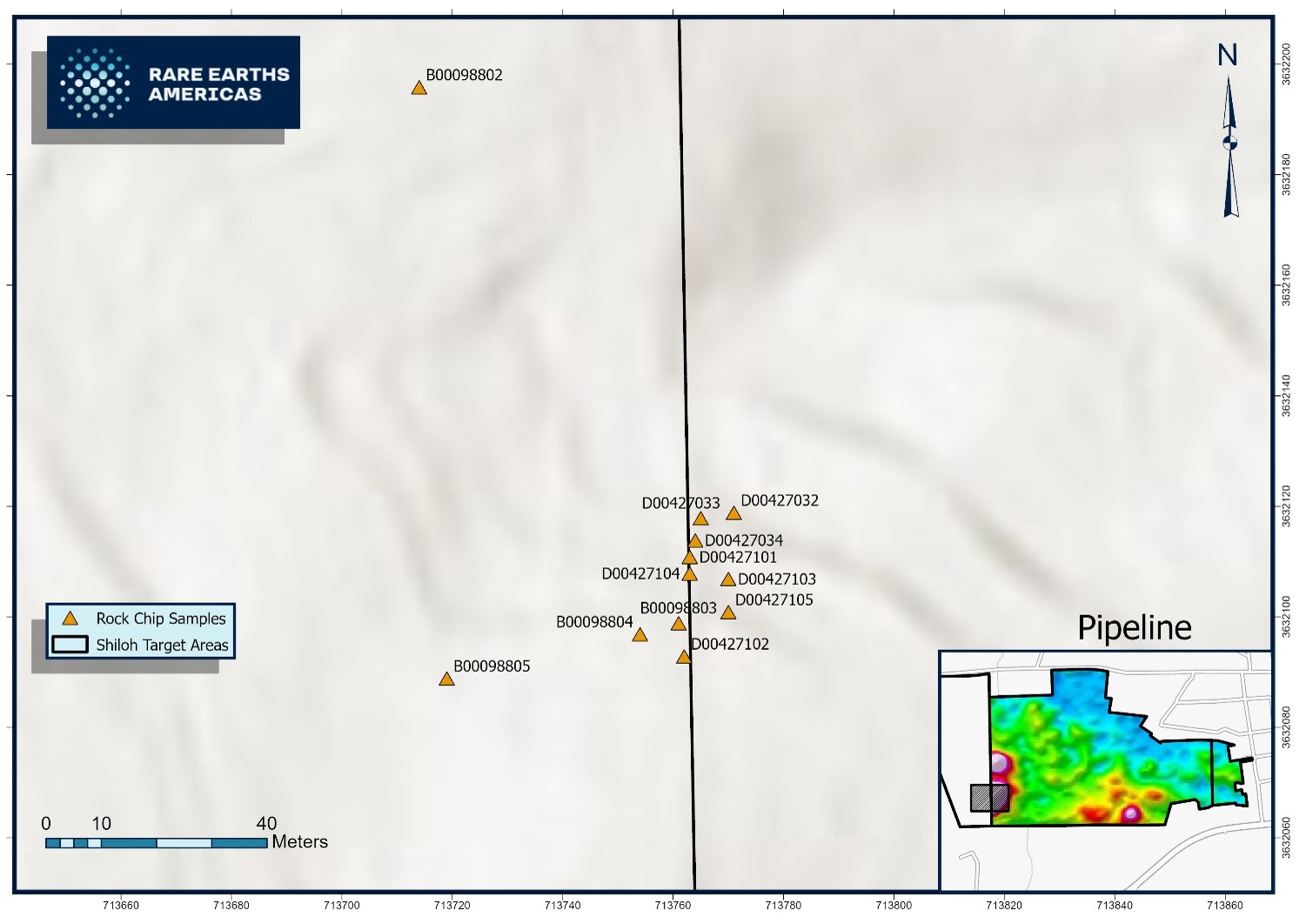

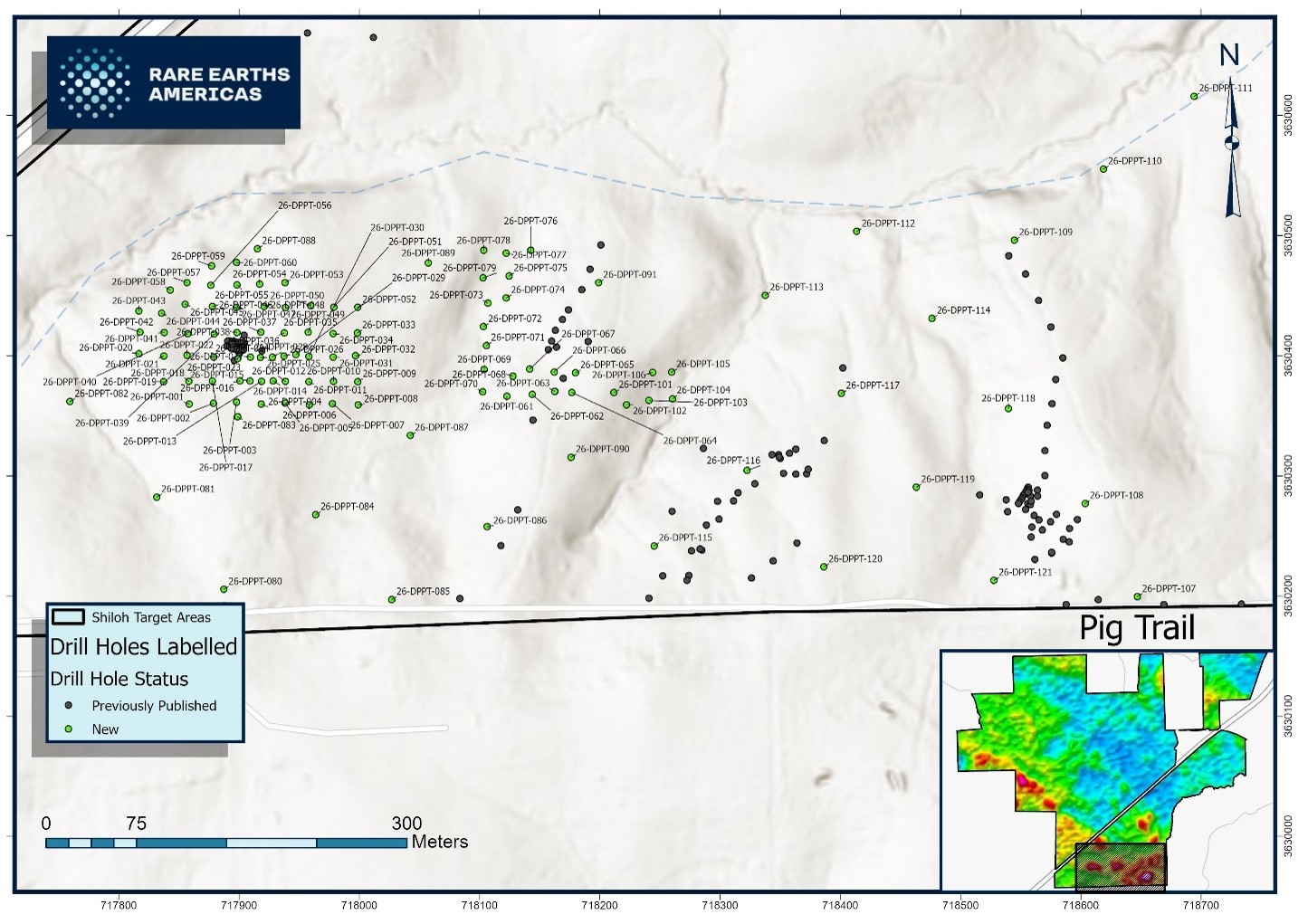

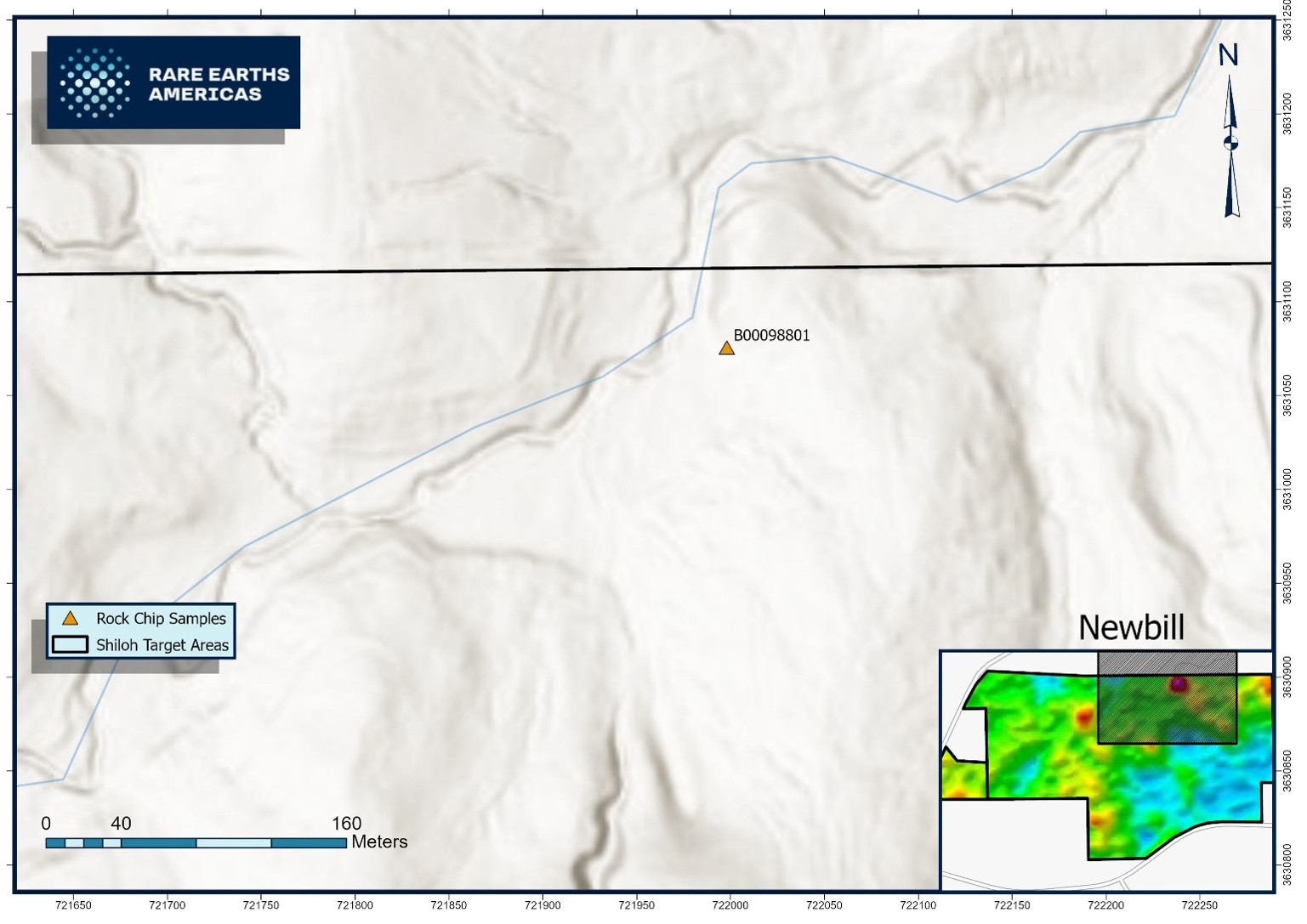

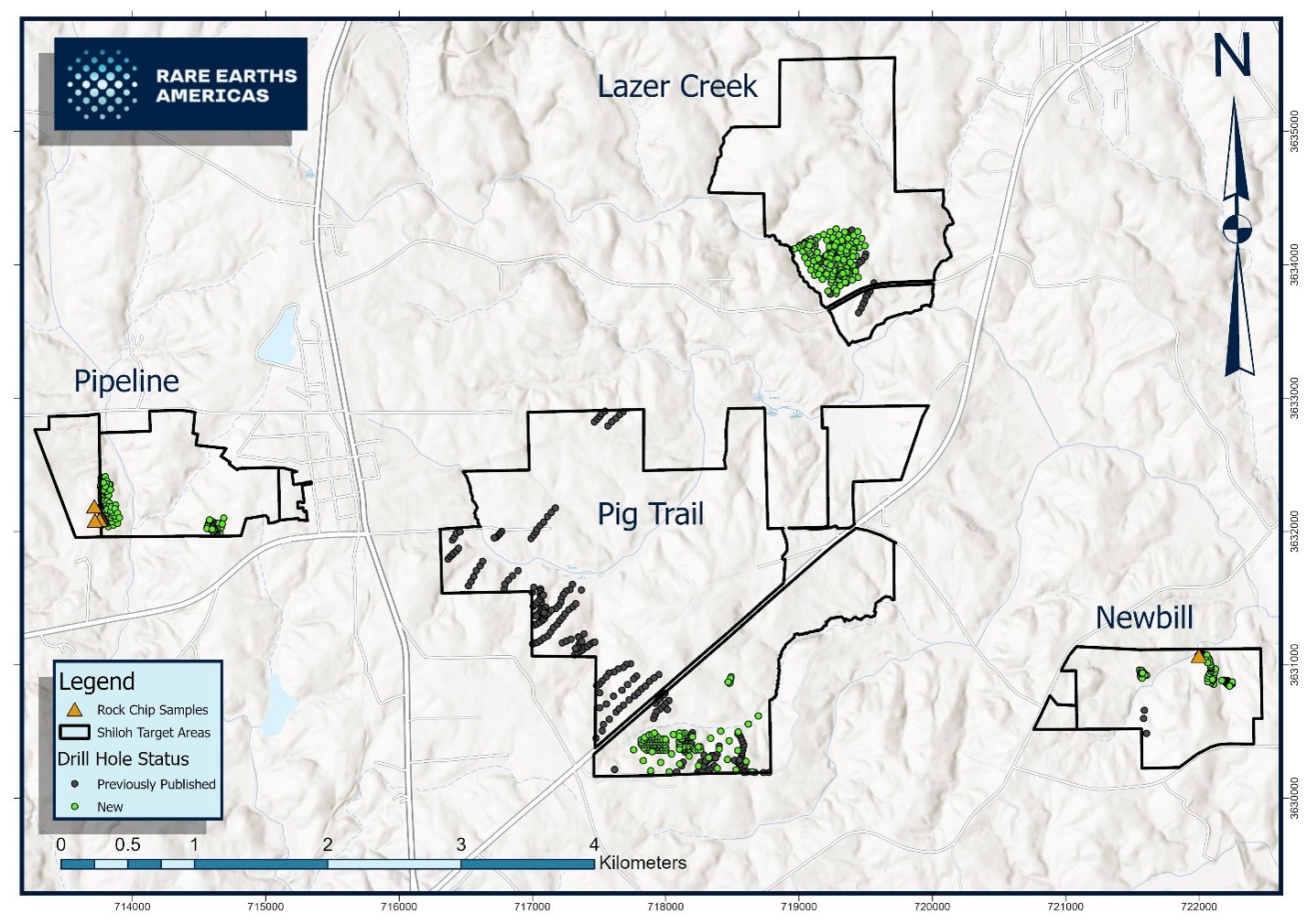

Figure 1 - Holes drilled & rock chip samples taken through Q1 2026, including holes drilled at Lazer Creek, Newbill, Pig Trail and Pipeline.

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

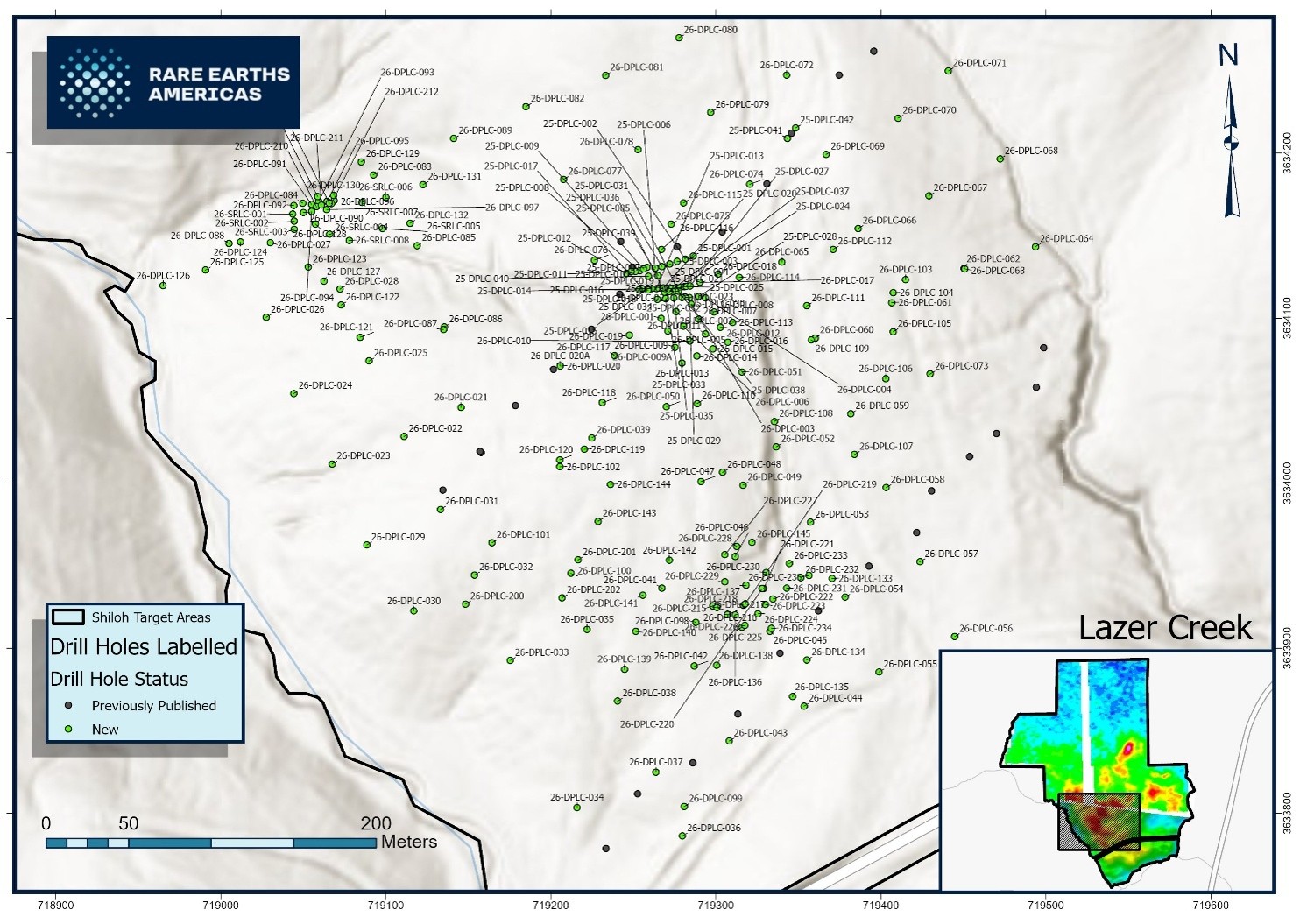

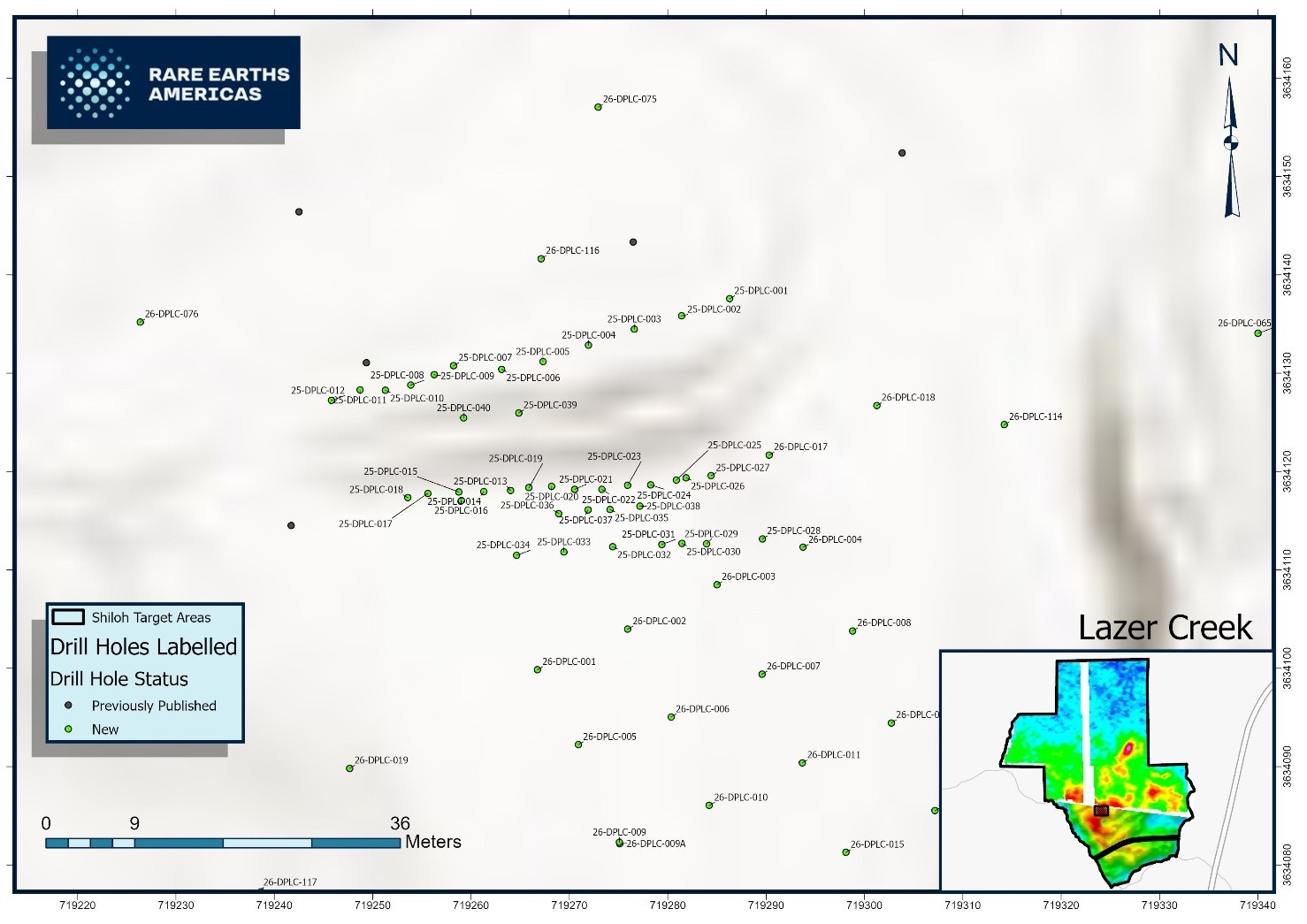

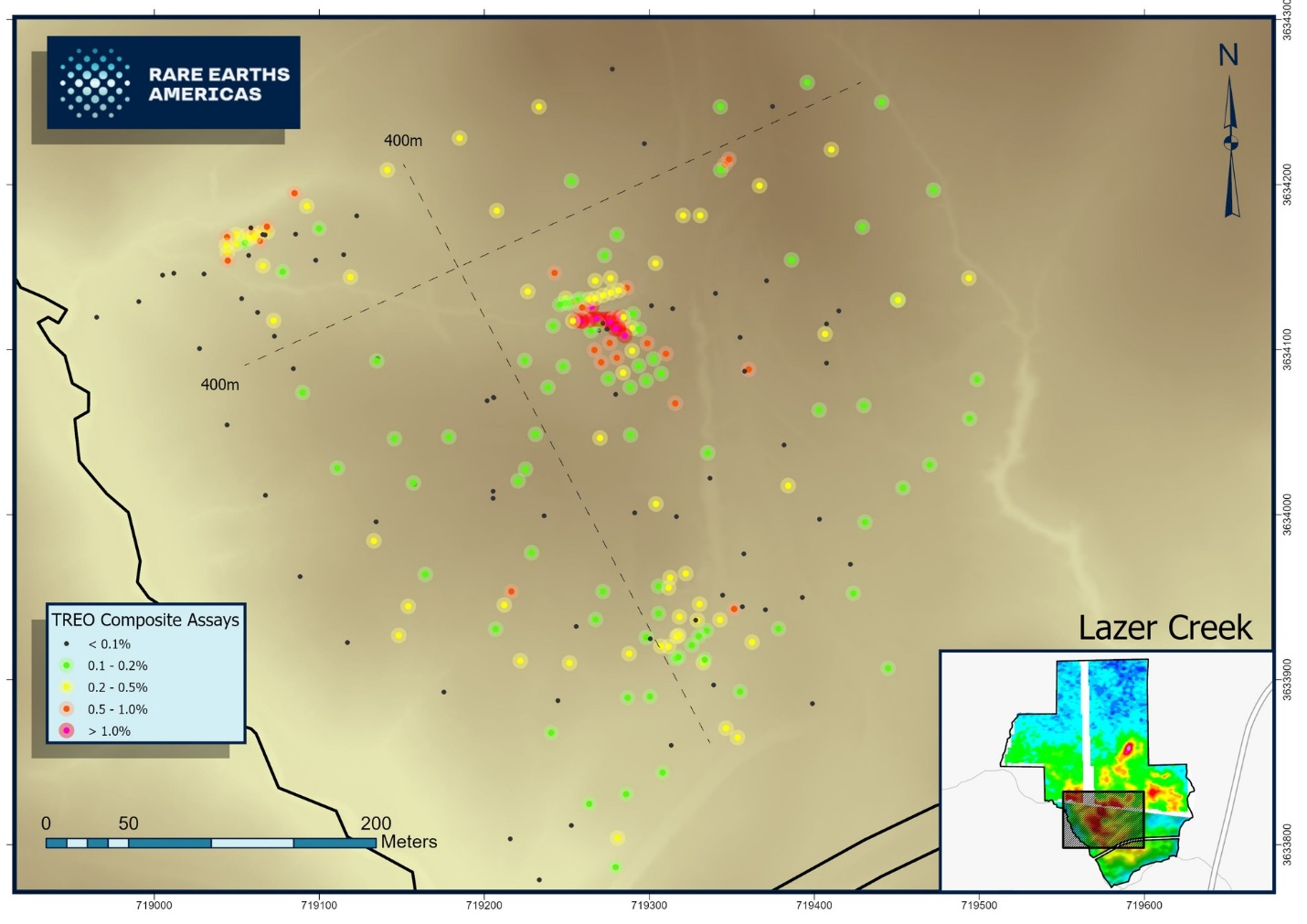

Figure 2 – Holes show composited TREO assays (length-weighted averages of all samples >0.1% TREO) for Lazer Creek holes drilled through 1st quarter of 2026. Equivalent thorium radiometrics shown on inset map. Reported composites are calculated using a threshold of >0.1% TREO and therefore do not represent full interval averages.

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

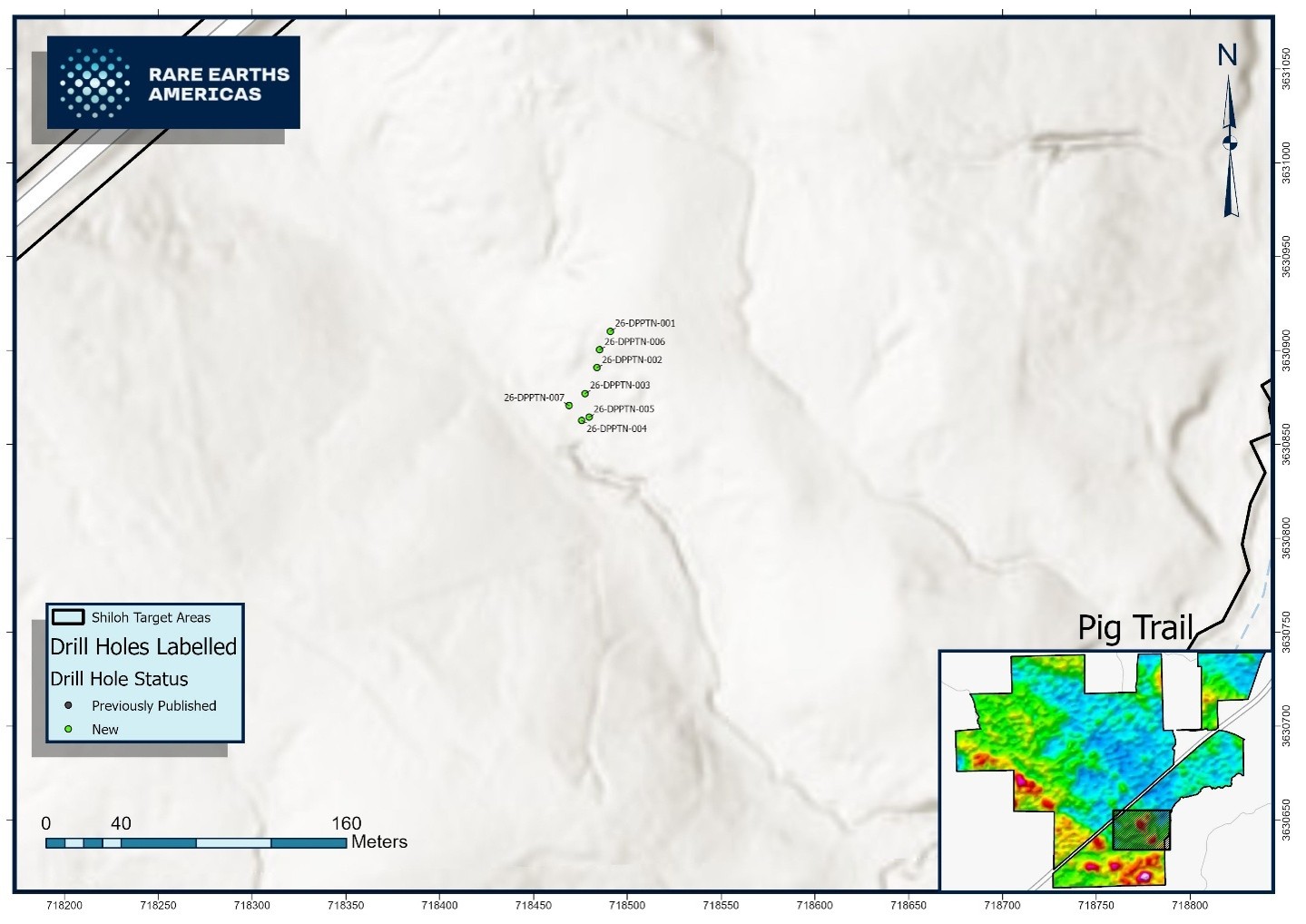

Figure 3 – Holes show composited TREO assays (length-weighted averages of all samples >0.1% TREO) received for Pig Trail for all holes drilled through 1st quarter of 2026. Equivalent thorium radiometrics shown on inset map. Reported composites are calculated using a threshold of >0.1% TREO and therefore do not represent full interval averages.

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

About Rare Earths Americas

Rare Earths Americas is an exploration stage company advancing a portfolio of critical minerals projects focused on high-grade heavy rare earth mineral assets in the United States and Brazil. REA’s portfolio includes three material projects, which the Company believes positions REA as a future potential cornerstone of non-Chinese rare earth supply, aligning with Western industrial and national security priorities. Rare earths elements are essential for advanced U.S. industries including robotics, electric vehicles, energy, defense, and consumer electronics.

Forward-Looking Statements & Technical Notes

This communication contains forward-looking statements within the meaning of Section 27A of the Securities Act of 1933, as amended, and Section 21E of the Securities Exchange Act of 1934, as amended. When used in this communication, the words “plan,” “target,” “anticipate,” “believe,” “estimate,” “intend,” “potential,” “will” and “expect” and similar expressions are intended to identify such forward-looking statements. Any statements regarding potential future exploration success, the presence of a monazite-bearing sands system, that high-grade selective samples may be representative of broader mineralization, the possible delineation of a mineral resource, or any subsequent technical or economic studies are forward-looking in nature. There is no certainty that continued exploration will result in the definition of a mineral resource or that any future development scenario will be realized. These forward-looking statements are based on assumptions and expectations that may not be realized and are inherently subject to numerous risks and uncertainties, which could cause actual results to differ materially from these statements. These risks and uncertainties include, among others: the execution and timing of our planned exploration activities; our use and evaluation of historic data; our ability to achieve our strategic goals; the state of the economy and financial markets generally and the effect on our industry; and the market for our common stock. The foregoing list is not exhaustive. For additional information regarding factors that may cause actual results to differ materially from those indicated in our forward-looking statements, we refer you to the risk factors included in the Company’s Rule 424(b)(4) Prospectus filed on May 7, 2026, which are available at www.sec.gov. We caution investors not to place undue reliance on the forward-looking statements contained in this communication. These statements speak only as of the date of this communication, and we undertake no obligation to update or revise these

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

statements, whether as a result of new information, future events or otherwise, except as may be required by law. We do not give any assurance that we will achieve our expectations.

Quality Assurance & Quality Control

Quality assurance/quality control measures consist of regular insertion of certified reference materials, duplicate samples, and blanks into the sample stream. Samples are submitted to the ALS Geochemistry sample preparation facility in Reno, Nevada, where they are logged, dried, crushed, split, and pulverized (methods CRU-21, CRU-31, LOG-22, LOG-24, SPL-22Y, PUL-31, SND-ALS, WEI-21). Rare earth element and multi-element analyses are performed at the ALS Geochemistry laboratory in North Vancouver, British Columbia, including determination of lanthanum (La), cerium (Ce), praseodymium (Pr), neodymium (Nd), and samarium (Sm) by the OGREE method, multi-element analysis by inductively coupled plasma mass spectrometry and optical emission spectroscopy (ICP-MS and ICP-AES;Methods ME-MS81, ME-MS81h, ME-ICP06, TOT-ICP06), and loss on ignition by gravimetry (OA-GRA05). ALS Minerals is an ISO/IEC 17025:2017 accredited laboratory for select methods and analytes. Assay results are reviewed, and discrepancies are investigated and resolved prior to incorporation of these data into the Company database.

Qualified Person Information

The scientific and technical information contained in this news release has been reviewed and approved by Paul Dockweiler, Senior Geologist with Geosyntec Consultants [CPG-11379/SME Registered Member], a Qualified Person (QP) as defined by US Securities and Exchange Commission SEC Regulation S‑K 1300. The scientific and technical information in this press release has been reviewed and approved by Paul Dockweiler, CPG, a “Qualified Person” as defined under Regulation S‑K 1300. Mr. Dockweiler’s review was limited to the geological and technical information presented, which remains subject to verification and refinement as additional data becomes available. The Qualified Person has performed verification procedures considered appropriate; aspects of the underlying data remain subject to ongoing analytical refinement and validation

Contact:

RE-Americas@icrinc.com

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

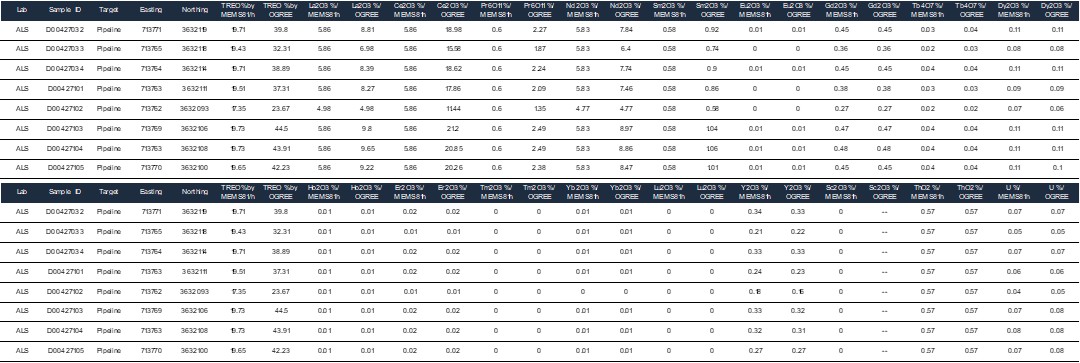

Table 1a – Rare earth element, thorium & uranium assay results of rock chip surface samples taken from within the project area.

Notes: 1) For analytes not exceeding the upper detection limits of ME-MS81h, results from the certified method are reported. For analytes exceeding those limits, OGREE results were used to provide quantitative values. TREO values for samples exceeding detection limits should be considered approximate and subject to further confirmation; 2) Reported TREO values are preliminary and may be subject to minor refinement as additional mineralogical and analytical work is completed.

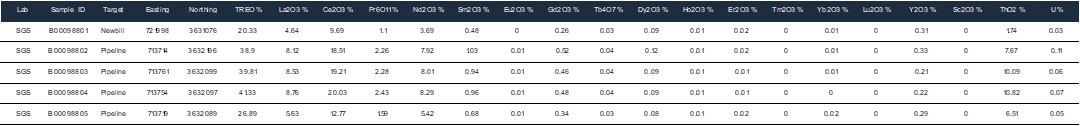

Table 1b - Rare earth element, thorium & uranium assay results of rock chip surface samples taken from within the project area

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Certain rock chip surface samples returned TREO values exceeding the upper detection limits of standard, commercial laboratory methods, demonstrating high concentrations of rare earth element (REE) mineralization that surpass the capacity of conventional analytical techniques. Assay results are reported as received, including both quantified values within certified detection ranges and those over the upper detection limit, to transparently reflect the full intensity and grade range of mineralization observed on the property. The Company notes that these over detection limit values represent REE concentrations that exceed the quantifiable limits of the methods employed rather than precise grade determinations; however, they are considered indicative of high-grade REE mineralization. Additional analytical work is planned, and the Company is actively engaging accredited laboratories to implement advanced analytical techniques, including extended detection methods and re-assay protocols, to accurately quantify these high-value samples and support ongoing evaluation.

ALS assay results are reported at the analytical limit of ME-MS81h (>20.00% TREO), which is ISO/IEC 17025:2017 certified, alongside the overlimit assays from the OGREE method which is not ISO/IEC 17025:2017 certified. Thorium values are reported at detection limit when concentrations exceeded the upper limit of detection for ME-MS81h. SGS results used either GC_IMS93A50V or GC_XRF76V which are ISO/IEC 17025:2017 certified, except for Yttrium which used GC_ICP93A50V which is not ISO/IEC 17025:2017 certified.

The reported TREO is calculated by converting each of the 15 rare earth elements (the lanthanides plus yttrium) from the laboratory-reported elemental percentage to the corresponding stoichiometric oxide and summing them. Reported TREO is the sum of the following oxides: La2O3, Ce2O3, Pr6O11, Nd2O3, Sm2O3, Eu2O3, Gd2O3, Tb4O7, Dy2O3, Ho2O3, Er2O3, Tm2O3, Yb2O3, Lu2O3 and Y2O3. For select analytes that exceeded the upper detection limits of methods ME-MS81/h, results from method OGREE were used in the calculation of TREO.

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Appendix A

Drilling Results 19-May-2025 to 31-Mar-2026

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Foothills Rare Earths - Shiloh Project. All drill holes completed 19-May-2025 to 31-Mar-2026 with assays returned. Assay results are reported averaged across mineralized intervals (defined as >=0.10% TREO cut-off, <=2 m internal dilution, length-weighted). Holes with no >=0.10% intercept show TREO results averaged across the entire hole. Final Hole Depth = total drilled depth (Td_m).


Prospect	Hole_ID	TREO %	Interval (m)	Thickness	Easting	Northing	Elevation	Azimuth	Dip	Pr6O11 ppm	Nd2O3 ppm	Tb4O7 ppm	Dy2O3 ppm	Y2O3 ppm	Th ppm	U ppm
Newbill	25-DDNB-009	0.59	0 - 11	11	722024	3631067	218	319	-58	318	1,170	13	57	273	272	24
Newbill	25-DDNB-010	0.3	5.5 - 9	3.5	722025	3631066	218	321	-78	156	654	11	56	278	127	10
Newbill	25-DDNB-011	0.19	8.12 - 10	1.88	722026	3631066	218	5	-59	94	380	9	40	212	41	7
Newbill	25-DDNB-011	0.21	5.24 - 6	0.76	722026	3631066	218	5	-59	88	358	14	69	521	25	38
Newbill	25-DDNB-012	0.11	1 - 6.06	5.06	722023	3631064	218	314	-59	57	224	5	23	128	30	10
Newbill	25-DDNB-012	1.06	6.75 - 10	3.25	722023	3631064	218	314	-59	582	2,081	17	68	296	569	26
Newbill	25-DDNB-013	0.13	2 - 6	4	722023	3631063	218	298	-86	75	304	6	28	124	50	17
Newbill	25-DDNB-013	0.32	6.5 - 11.08	4.58	722023	3631063	218	298	-86	169	673	9	42	187	193	14
Newbill	25-DDNB-014	0.12	10 - 12	2	722035	3631059	220	311	-62	59	256	5	26	135	33	10
Newbill	25-DDNB-014	0.15	33 - 33.5	0.5	722035	3631059	220	311	-62	62	236	5	36	237	130	11
Newbill	25-DDNB-014	1.29	13.32 - 16	2.68	722035	3631059	220	311	-62	700	2,504	17	69	253	773	32
Newbill	25-DDNB-015	0.12	11.38 - 12	0.62	722035	3631059	220	301	-85	62	237	3	14	67	79	7
Newbill	25-DDNB-015	0.12	13.46 - 13.84	0.38	722035	3631059	220	301	-85	57	252	7	30	152	20	6
Newbill	25-DDNB-015	0.64	16 - 16.51	0.51	722035	3631059	220	301	-85	358	1,235	10	34	124	691	29
Newbill	25-DDNB-016	0.11	11.07 - 14.35	3.28	722035	3631059	220	343	-61	55	237	5	26	133	35	12
Newbill	25-DDNB-016	0.18	3 - 4.5	1.5	722035	3631059	220	343	-61	109	425	6	27	117	81	7
Newbill	25-DDNB-017	0.36	33 - 33.55	0.55	722032	3631056	219	308	-61	144	603	14	97	603	366	19
Newbill	25-DDNB-017	0.46	8.35 - 11.62	3.27	722032	3631056	219	308	-61	234	915	11	55	252	314	25
Newbill	25-DDNB-017	1.81	15.24 - 17	1.76	722032	3631056	219	308	-61	979	3,415	22	85	314	727	39
Newbill	25-DDNB-018	0.59	10.7 - 12.5	1.8	722032	3631056	219	312	-85	305	1,208	17	79	352	321	20
Newbill	25-DDNB-018	0.83	16.4 - 17.5	1.1	722032	3631056	219	312	-85	481	1,614	12	48	171	953	29
Newbill	25-DDNB-019	0.12	32 - 34	2	722034	3631055	220	249	-50	64	226	3	11	49	133	8
Newbill	25-DDNB-019	0.12	80.41 - 82	1.59	722034	3631055	220	249	-50	62	246	3	13	59	84	3
Newbill	25-DDNB-019	0.61	42.51 - 43	0.49	722034	3631055	220	249	-50	355	1,242	9	29	91	742	31

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Newbill	25-DDNB-019	1.44	54.8 - 54.93	0.13	722034	3631055	220	249	-50	871	3,208	30	96	292	2,560	105
Newbill	25-DDNB-019	1.66	17.5 - 19.4	1.9	722034	3631055	220	249	-50	901	3,380	32	135	506	872	42
Newbill	25-DDNB-020	0.14	4 - 6	2	722042	3631042	221	327	-60	99	348	5	19	93	83	12
Newbill	25-DDNB-020	0.15	23 - 25.5	2.5	722042	3631042	221	327	-60	81	312	3	11	45	172	10
Newbill	25-DDNB-020	0.86	19.32 - 20.79	1.47	722042	3631042	221	327	-60	456	1,748	18	79	373	721	27
Newbill	25-DDNB-021	0.1	4 - 6	2	722043	3631042	221	322	-84	55	220	4	23	119	53	9
Newbill	25-DDNB-021	0.2	32.16 - 33	0.84	722043	3631042	221	322	-84	111	429	5	18	77	224	7
Newbill	25-DDNB-021	0.39	20 - 22	2	722043	3631042	221	322	-84	207	806	10	43	209	295	14
Newbill	25-DDNB-021	0.55	38.03 - 38.07	0.04	722043	3631042	221	322	-84	308	1,190	11	48	216	563	13
Newbill	25-DDNB-022	0.61	20.78 - 22.22	1.44	722041	3631041	220	305	-60	334	1,177	15	63	301	432	18
Newbill	25-DDNB-022	0.83	29.92 - 34.5	4.58	722041	3631041	220	305	-60	478	1,702	12	43	153	1,089	34
Lazer Creek	25-DPLC-001	0.53	3.05 - 4.88	1.83	719286	3634138	244	0	-90	269	987	8	39	190	427	13
Lazer Creek	25-DPLC-002	0.25	0 - 4.42	4.42	719281	3634136	244	0	-90	136	489	5	27	120	164	9
Lazer Creek	25-DPLC-003	0.26	0 - 4.27	4.27	719277	3634134	243	0	-90	131	487	7	33	155	179	15
Lazer Creek	25-DPLC-004	0.32	0 - 3.96	3.96	719272	3634133	243	0	-90	155	563	7	34	152	255	18
Lazer Creek	25-DPLC-005	0.34	1.89 - 3.05	1.16	719267	3634131	243	0	-90	157	576	6	32	144	263	18
Lazer Creek	25-DPLC-006	0.22	1.52 - 4.57	3.05	719263	3634130	243	0	-90	112	419	5	28	132	144	16
Lazer Creek	25-DPLC-007	0.18	0 - 1.52	1.52	719258	3634131	242	0	-90	71	265	5	23	107	141	15
Lazer Creek	25-DPLC-008	0.51	5.71 - 7.62	1.91	719254	3634129	241	0	-90	275	1,003	17	68	241	509	40
Lazer Creek	25-DPLC-009	0.12	0 - 4.57	4.57	719256	3634130	242	0	-90	61	234	4	20	86	92	11
Lazer Creek	25-DPLC-010	0.14	0 - 1.52	1.52	719251	3634128	241	0	-90	63	238	4	22	104	110	14
Lazer Creek	25-DPLC-010	0.53	5.27 - 5.39	0.12	719251	3634128	241	0	-90	231	822	8	41	208	341	21
Lazer Creek	25-DPLC-011	0.1	4.27 - 7.62	3.35	719249	3634128	241	0	-90	56	182	3	13	78	82	12
Lazer Creek	25-DPLC-011	0.13	0 - 1.52	1.52	719249	3634128	241	0	-90	67	226	4	18	96	106	13
Lazer Creek	25-DPLC-012	0.14	0 - 1.52	1.52	719246	3634127	241	0	-90	66	219	4	18	94	135	12
Lazer Creek	25-DPLC-012	0.15	7.62 - 9.14	1.52	719246	3634127	241	0	-90	73	254	3	13	68	108	18
Lazer Creek	25-DPLC-013	1.88	5.88 - 11.16	5.27	719264	3634118	243	0	-90	969	3,639	97	394	2,080	1,481	184
Lazer Creek	25-DPLC-014	2.31	6.1 - 9.91	3.81	719261	3634118	243	0	-90	1,132	4,309	116	562	2,558	1,499	235
Lazer Creek	25-DPLC-015	0.13	0 - 1.52	1.52	719259	3634118	243	0	-90	74	252	4	19	93	84	12

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Lazer Creek	25-DPLC-015	3.52	7.35 - 8.63	1.28	719259	3634118	243	0	-90	1,719	6,778	175	810	4,023	2,818	315
Lazer Creek	25-DPLC-015	10.84	6.1 - 6.77	0.67	719259	3634118	243	0	-90	5,219	19,945	919	2,743	12,382	5,000	992
Lazer Creek	25-DPLC-016	2.27	6.1 - 9.78	3.69	719259	3634117	243	0	-90	1,086	4,187	116	546	2,708	1,351	186
Lazer Creek	25-DPLC-017	1.43	5.82 - 11.2	5.38	719256	3634118	242	0	-90	716	2,808	63	310	1,353	1,097	117
Lazer Creek	25-DPLC-018	0.28	7.62 - 11.56	3.94	719254	3634117	242	0	-90	135	468	4	18	79	238	17
Lazer Creek	25-DPLC-019	1.74	5.75 - 11.96	6.22	719266	3634118	243	0	-90	863	3,389	84	400	1,674	1,349	167
Lazer Creek	25-DPLC-020	0.12	0 - 1.52	1.52	719268	3634118	244	0	-90	67	244	4	22	92	90	15
Lazer Creek	25-DPLC-020	0.39	5.9 - 9.22	3.32	719268	3634118	244	0	-90	186	693	18	83	398	312	46
Lazer Creek	25-DPLC-020	1.76	10.67 - 12.04	1.37	719268	3634118	244	0	-90	839	3,239	95	434	1,803	1,434	171
Lazer Creek	25-DPLC-021	1.5	4.57 - 10.77	6.2	719271	3634118	244	0	-90	711	2,736	72	312	1,271	1,168	174
Lazer Creek	25-DPLC-022	2.02	0 - 10.19	10.19	719273	3634118	244	0	-90	1,003	3,935	107	457	1,853	1,668	196
Lazer Creek	25-DPLC-023	1.35	0 - 11.19	11.19	719276	3634119	245	0	-90	673	2,624	67	291	1,350	1,053	127
Lazer Creek	25-DPLC-024	1.14	0 - 12.42	12.42	719278	3634119	245	0	-90	572	2,217	57	258	1,185	846	94
Lazer Creek	25-DPLC-025	0.73	0 - 3.81	3.81	719281	3634119	245	0	-90	364	1,377	35	149	682	652	97
Lazer Creek	25-DPLC-026	1.3	0 - 4.01	4.01	719282	3634119	245	0	-90	654	2,638	62	281	1,281	1,104	152
Lazer Creek	25-DPLC-027	0.28	0 - 6.1	6.1	719284	3634120	245	0	-90	141	533	12	58	271	293	30
Lazer Creek	25-DPLC-027	0.44	10.67 - 11.43	0.76	719284	3634120	245	0	-90	249	825	8	34	178	422	31
Lazer Creek	25-DPLC-028	0.3	7.25 - 9.14	1.89	719290	3634113	246	0	-90	116	440	10	50	292	232	22
Lazer Creek	25-DPLC-029	0.57	0 - 2.07	2.07	719284	3634113	245	0	-90	308	1,165	24	105	483	542	55
Lazer Creek	25-DPLC-030	1.76	0 - 5.33	5.33	719281	3634113	245	0	-90	867	3,543	89	370	1,677	1,152	197
Lazer Creek	25-DPLC-031	1.21	1.52 - 5.56	4.04	719279	3634113	245	0	-90	595	2,338	58	275	1,182	1,004	107
Lazer Creek	25-DPLC-032	0.05	0 - 11.79	11.79	719274	3634112	245	0	-90	27	95	2	10	54	36	9
Lazer Creek	25-DPLC-033	0.05	0 - 7.88	7.88	719269	3634112	244	0	-90	28	97	2	9	49	37	8
Lazer Creek	25-DPLC-034	0.13	6.1 - 7.37	1.27	719265	3634111	243	0	-90	60	204	2	10	52	87	17
Lazer Creek	25-DPLC-035	1.32	1.52 - 9.4	7.87	719274	3634116	244	0	-90	708	2,217	56	315	1,141	1,305	142
Lazer Creek	25-DPLC-036	0.19	6.1 - 7.62	1.52	719269	3634116	244	0	-90	106	405	7	32	155	121	23
Lazer Creek	25-DPLC-037	0.07	0 - 2.95	2.95	719272	3634116	244	0	-90	41	150	2	11	49	46	10
Lazer Creek	25-DPLC-038	1.59	1.52 - 7.62	6.1	719277	3634116	245	0	-90	803	3,173	70	303	1,132	1,588	188
Lazer Creek	25-DPLC-039	1.67	0 - 9.5	9.5	719265	3634126	241	0	-90	802	3,227	78	358	1,674	1,164	148

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Lazer Creek	25-DPLC-040	0.79	0 - 10.97	10.97	719259	3634125	241	0	-90	413	1,591	29	134	642	500	47
Lazer Creek	25-DPLC-041	0.16	1.52 - 6.1	4.57	719343	3634209	252	0	-90	90	331	3	16	73	87	10
Lazer Creek	25-DPLC-042	0.61	1.52 - 6.83	5.31	719348	3634215	252	0	-90	319	1,105	9	43	190	479	15
Newbill	25-DPNB-055	0.11	1.52 - 2.43	0.91	722213	3630883	223	0	-90	62	232	3	16	66	92	14
Newbill	25-DPNB-056	0.19	1.52 - 3.5	1.98	722215	3630881	223	0	-90	119	503	10	58	311	21	58
Newbill	25-DPNB-057	0.15	3.05 - 4.57	1.52	722219	3630876	224	0	-90	87	349	6	36	211	107	18
Newbill	25-DPNB-058	0.08	0 - 5.02	5.02	722222	3630873	224	0	-90	39	147	3	14	78	57	14
Newbill	25-DPNB-059	0.14	4.57 - 5.94	1.37	722226	3630869	225	0	-90	73	262	5	27	122	75	12
Newbill	25-DPNB-060	0.06	0 - 9.6	9.6	722229	3630865	225	0	-90	31	111	3	14	66	55	12
Newbill	25-DPNB-061	0.11	3.56 - 4.57	1.01	722233	3630862	226	0	-90	57	202	4	18	77	106	13
Newbill	25-DPNB-062	0.24	4.27 - 4.42	0.15	722236	3630859	226	0	-90	116	426	5	28	126	187	16
Newbill	25-DPNB-063	0.06	0 - 1.67	1.67	722204	3630877	223	0	-90	28	106	2	15	90	55	19
Newbill	25-DPNB-064	0.05	0 - 1.52	1.52	722208	3630873	223	0	-90	27	100	1	6	29	36	7
Newbill	25-DPNB-065	0.32	1.22 - 1.34	0.12	722211	3630870	224	0	-90	158	638	9	47	208	58	26
Newbill	25-DPNB-066	0.22	3.41 - 4.57	1.16	722215	3630865	224	0	-90	102	433	14	90	488	12	78
Newbill	25-DPNB-067	0.1	5.09 - 5.63	0.54	722218	3630862	225	0	-90	39	160	8	52	302	14	90
Newbill	25-DPNB-068	0.16	4.57 - 5.63	1.06	722222	3630858	225	0	-90	80	302	5	26	128	79	14
Newbill	25-DPNB-069	0.14	3.41 - 5.94	2.53	722225	3630854	226	0	-90	79	305	5	27	143	68	14
Newbill	25-DPNB-070	0.18	3.5 - 6.97	3.47	722230	3630851	226	0	-90	91	360	6	35	218	93	11
Newbill	25-DPNB-071	0.05	0 - 8.07	8.07	722223	3630845	226	0	-90	25	93	2	10	55	36	12
Newbill	25-DPNB-072	0.05	0 - 7.61	7.61	722219	3630848	225	0	-90	27	103	2	11	69	36	14
Newbill	25-DPNB-073	0.1	3.05 - 4.57	1.52	722215	3630851	225	0	-90	61	231	3	17	81	46	11
Newbill	25-DPNB-073	0.1	6.71 - 7.32	0.61	722215	3630851	225	0	-90	48	212	5	26	150	6	71
Newbill	25-DPNB-074	0.2	3.5 - 4.57	1.07	722212	3630855	225	0	-90	83	379	12	69	447	7	30
Newbill	25-DPNB-075	0.12	1.34 - 3.04	1.7	722208	3630858	224	0	-90	64	283	6	30	163	6	91
Newbill	25-DPNB-075	0.21	5.21 - 5.33	0.12	722208	3630858	224	0	-90	104	436	8	42	190	33	26
Newbill	25-DPNB-076	0.06	0 - 2.74	2.74	722205	3630862	224	0	-90	39	144	2	11	47	30	14
Newbill	25-DPNB-077	0.14	6.1 - 6.4	0.3	722201	3630866	223	0	-90	68	255	4	21	117	78	16
Newbill	25-DPNB-078	0.12	4.08 - 6.03	1.95	722198	3630869	223	0	-90	51	194	3	24	167	92	27

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Newbill	25-DPNB-079	0.11	10.48 - 10.82	0.34	722234	3630873	225	0	-90	55	199	2	12	59	69	13
Newbill	25-DPNB-080	0.06	0 - 9.44	9.44	722237	3630868	226	0	-90	27	101	3	15	83	52	15
Newbill	25-DPNB-081	0.06	0 - 9.44	9.44	722231	3630869	225	0	-90	29	101	2	11	58	51	11
Newbill	25-DPNB-082	0.1	2.41 - 2.56	0.15	722234	3630866	226	0	-90	52	180	4	16	57	111	13
Newbill	25-DPNB-083	0.19	5.15 - 5.21	0.06	722241	3630865	226	0	-90	84	297	11	68	405	153	31
Newbill	25-DPNB-084	0.21	6.37 - 6.52	0.15	722239	3630861	226	0	-90	96	335	7	37	193	113	17
Newbill	25-DPNB-085	0.14	4.33 - 4.88	0.55	722247	3630859	227	0	-90	71	251	4	20	115	96	11
Newbill	25-DPNB-086	0.1	4.63 - 6.09	1.46	722242	3630854	227	0	-90	52	183	4	22	135	68	11
Newbill	25-DPNB-087	0.1	4.57 - 6.1	1.52	722239	3630850	227	0	-90	56	201	4	19	111	59	10
Newbill	25-DPNB-087	0.14	2.68 - 3.05	0.37	722239	3630850	227	0	-90	70	251	3	13	75	99	12
Newbill	25-DPNB-087	0.19	8.11 - 8.32	0.21	722239	3630850	227	0	-90	89	314	6	36	217	131	27
Newbill	25-DPNB-088	0.11	4.57 - 6.7	2.13	722235	3630846	227	0	-90	57	215	4	21	110	66	11
Newbill	25-DPNB-089	0.16	4.57 - 5.97	1.4	722232	3630849	226	0	-90	87	337	5	31	171	94	10
Newbill	25-DPNB-090	0.05	0 - 2.43	2.43	722200	3630878	222	0	-90	21	78	2	11	57	38	10
Newbill	25-DPNB-091	0.05	0 - 2.13	2.13	722196	3630880	222	0	-90	25	92	2	9	46	41	9
Newbill	25-DPNB-092	0.05	0 - 6	6	722192	3630883	222	0	-90	24	93	2	12	72	37	23
Newbill	25-DPNB-093	0.05	0 - 4.99	4.99	722188	3630887	220	0	-90	22	84	2	10	55	31	11
Newbill	25-DPNB-094	0.04	0 - 5.18	5.18	722184	3630885	220	0	-90	19	73	2	9	51	27	8
Newbill	25-DPNB-095	0.03	0 - 5.02	5.02	722178	3630882	218	0	-90	12	49	1	7	38	14	4
Newbill	25-DPNB-096	0.08	0 - 3.32	3.32	722171	3630882	218	0	-90	35	151	3	18	101	24	6
Newbill	25-DPNB-097	0.06	0 - 7.84	7.84	722236	3630859	226	0	-90	31	116	2	12	58	55	9
Newbill	25-DPNB-098	0.07	0 - 7.39	7.39	722240	3630857	226	0	-90	33	126	2	12	61	58	12
Newbill	25-DPNB-099	0.1	1.52 - 3.04	1.52	722245	3630862	226	0	-90	49	184	2	10	51	89	8
Newbill	25-DPNB-100	0.12	3.05 - 4.57	1.52	722247	3630866	226	0	-90	57	219	3	16	87	97	10
Newbill	25-DPNB-101	0.06	0 - 7.31	7.31	722249	3630870	226	0	-90	27	104	2	13	77	46	12
Newbill	25-DPNB-102	0.1	5.76 - 6.71	0.95	722231	3630844	227	0	-90	45	173	4	26	157	60	43
Newbill	25-DPNB-103	0.1	4.57 - 5.79	1.22	722228	3630840	226	0	-90	54	206	4	22	110	54	15
Newbill	25-DPNB-104	0.25	0 - 1.52	1.52	722008	3631068	217	0	-90	132	493	6	26	115	184	13
Newbill	25-DPNB-104	1.29	4.42 - 5.49	1.07	722008	3631068	217	0	-90	689	2,438	18	70	271	598	37

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Newbill	25-DPNB-105	0.55	0 - 5.18	5.18	722007	3631067	217	0	-90	300	1,063	8	34	136	422	22
Newbill	25-DPNB-106	0.47	0 - 2.68	2.68	722005	3631065	216	0	-90	271	1,027	11	45	159	555	31
Newbill	25-DPNB-107	0.34	0 - 2.68	2.68	722003	3631063	216	0	-90	176	630	7	28	111	272	22
Newbill	25-DPNB-108	0.16	0 - 2.56	2.56	722002	3631061	216	0	-90	80	293	4	18	86	107	17
Newbill	25-DPNB-109	0.13	0 - 1.52	1.52	722000	3631060	216	0	-90	61	224	3	15	71	82	18
Newbill	25-DPNB-109	0.67	4.28 - 4.72	0.44	722000	3631060	216	0	-90	380	1,369	14	46	159	689	51
Newbill	25-DPNB-110	0.45	3.72 - 5.03	1.31	721999	3631059	216	0	-90	268	944	9	35	155	433	35
Newbill	25-DPNB-111	0.24	2.68 - 4.42	1.74	721997	3631058	215	0	-90	134	479	5	16	68	206	18
Newbill	25-DPNB-112	0.7	1.52 - 2.77	1.25	721995	3631057	215	0	-90	391	1,486	13	43	133	780	43
Newbill	25-DPNB-113	0.05	0 - 5.18	5.18	721993	3631056	215	0	-90	22	81	2	8	41	35	8
Newbill	25-DPNB-114	0.32	2.87 - 6.1	3.23	721996	3631050	215	0	-90	212	765	6	25	108	242	20
Newbill	25-DPNB-115	0.1	3.05 - 4.27	1.22	721998	3631052	215	0	-90	56	197	2	12	68	81	13
Newbill	25-DPNB-116	0.05	0 - 4.88	4.88	721999	3631053	216	0	-90	21	75	1	8	53	35	8
Newbill	25-DPNB-117	0.05	0 - 4.36	4.36	722001	3631055	216	0	-90	22	82	2	10	67	38	8
Newbill	25-DPNB-118	0.05	0 - 4.12	4.12	722002	3631056	216	0	-90	24	87	2	9	52	36	9
Newbill	25-DPNB-119	0.54	2.53 - 3.35	0.82	722003	3631058	216	0	-90	286	1,098	15	65	294	316	44
Newbill	25-DPNB-120	0.71	1.52 - 3.05	1.52	722005	3631059	216	0	-90	391	1,390	15	65	262	513	55
Newbill	25-DPNB-121	0.19	0 - 3.05	3.05	722006	3631060	216	0	-90	98	352	5	22	97	146	20
Newbill	25-DPNB-122	0.23	4.57 - 5.41	0.84	722007	3631062	217	0	-90	119	450	5	21	95	270	24
Newbill	25-DPNB-122	0.88	0 - 2.16	2.16	722007	3631062	217	0	-90	471	1,806	20	80	264	681	41
Newbill	25-DPNB-123	0.79	0 - 1.98	1.98	722009	3631063	217	0	-90	410	1,593	21	84	301	492	33
Newbill	25-DPNB-124	0.15	0 - 3.05	3.05	722029	3631075	220	0	-90	90	365	8	41	195	29	6
Newbill	25-DPNB-125	0.1	0 - 3.05	3.05	722027	3631073	219	0	-90	63	250	5	28	131	12	30
Newbill	25-DPNB-125	0.16	5.49 - 6.1	0.61	722027	3631073	219	0	-90	67	273	7	38	252	20	24
Newbill	25-DPNB-126	0.11	2.26 - 3.96	1.71	722025	3631071	219	0	-90	49	207	7	41	253	11	49
Newbill	25-DPNB-127	0.28	2.5 - 5.18	2.68	722018	3631064	218	0	-90	142	582	11	53	317	106	25
Newbill	25-DPNB-128	1.02	1.77 - 3.96	2.19	722017	3631063	218	0	-90	557	2,072	25	111	593	666	79
Newbill	25-DPNB-129	0.31	1.52 - 3.35	1.83	722015	3631061	218	0	-90	164	646	10	44	246	152	45
Newbill	25-DPNB-130	0.13	1.52 - 4.88	3.35	722010	3631057	217	0	-90	68	254	3	13	67	74	36

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Newbill	25-DPNB-131	0.46	4.57 - 5	0.43	722009	3631056	217	0	-90	233	891	12	52	257	276	125
Newbill	25-DPNB-132	0.18	5.12 - 5.49	0.36	722008	3631055	216	0	-90	84	366	8	41	229	27	74
Newbill	25-DPNB-133	0.04	0 - 5.49	5.49	722006	3631053	216	0	-90	18	66	1	8	56	32	8
Newbill	25-DPNB-134	0.04	1.52 - 5.41	3.89	722005	3631052	216	0	-90	16	61	2	10	68	33	9
Newbill	25-DPNB-135	0.05	0 - 5.18	5.18	722004	3631050	216	0	-90	26	96	1	7	41	40	8
Newbill	25-DPNB-136	0.7	2.74 - 3.02	0.27	722002	3631049	216	0	-90	394	1,481	14	54	232	786	77
Newbill	25-DPNB-137	0.05	0 - 4.42	4.42	722001	3631048	216	0	-90	21	77	1	7	37	31	8
Newbill	25-DPNB-138	0.05	0 - 5.33	5.33	721999	3631046	216	0	-90	25	92	1	8	44	42	9
Newbill	25-DPNB-139	0.51	2.13 - 3.78	1.65	722002	3631043	216	0	-90	286	1,107	9	30	100	608	34
Newbill	25-DPNB-140	0.17	3.57 - 5.18	1.62	722003	3631044	216	0	-90	95	345	3	13	49	174	15
Newbill	25-DPNB-144	0.7	5.49 - 5.64	0.15	722005	3631045	216	0	-90	398	1,394	14	52	192	941	61
Newbill	25-DPNB-145	0.3	6.1 - 6.25	0.15	722006	3631047	216	0	-90	170	589	5	24	106	267	23
Newbill	25-DPNB-146	0.05	0 - 6.25	6.25	722008	3631048	217	0	-90	21	76	1	8	48	29	7
Newbill	25-DPNB-147	0.04	0 - 6.02	6.02	722009	3631049	217	0	-90	21	75	1	8	43	31	7
Newbill	25-DPNB-148	0.04	0 - 5.49	5.49	722011	3631050	217	0	-90	19	71	1	6	35	28	6
Newbill	25-DPNB-149	0.16	5.36 - 5.42	0.06	722014	3631053	217	0	-90	36	124	2	8	48	111	18
Newbill	25-DPNB-150	0.04	0 - 5.33	5.33	722015	3631054	218	0	-90	18	62	1	6	33	26	6
Newbill	25-DPNB-151	0.49	5.09 - 5.33	0.24	722018	3631058	218	0	-90	273	990	13	53	236	430	43
Newbill	25-DPNB-152	0.45	5.09 - 5.87	0.78	722020	3631059	218	0	-90	234	878	14	63	337	287	76
Pipeline	25-DPPL-001	0.23	0 - 4.57	4.57	713774	3632147	252	0	-90	106	408	9	53	276	180	19
Pipeline	25-DPPL-002	0.12	6.1 - 6.14	0.05	713778	3632145	252	0	-90	55	209	4	24	152	78	12
Pipeline	25-DPPL-002	0.91	0 - 3.05	3.05	713778	3632145	252	0	-90	532	1,851	11	42	168	1,945	25
Pipeline	25-DPPL-003	1.74	0 - 1.52	1.52	713784	3632143	252	0	-90	1,005	3,569	16	52	181	4,090	34
Pipeline	25-DPPL-004	0.05	0 - 6.07	6.07	713788	3632141	252	0	-90	26	93	2	9	54	49	8
Pipeline	25-DPPL-005	0.1	1.52 - 3.05	1.52	713805	3632136	252	0	-90	51	194	4	23	129	89	19
Pipeline	25-DPPL-006	0.06	0 - 7.34	7.34	713803	3632132	252	0	-90	34	121	2	11	56	41	7
Pipeline	25-DPPL-009	0.08	3.05 - 5.82	2.77	713774	3632164	252	0	-90	43	154	3	18	105	64	16
Lazer Creek	26-DPLC-001	0.56	5.06 - 5.49	0.43	719267	3634100	244	0	-90	274	955	8	44	270	526	42
Lazer Creek	26-DPLC-002	0.71	7.01 - 7.22	0.21	719276	3634104	245	0	-90	383	1,330	12	62	363	400	50

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Lazer Creek	26-DPLC-003	1.57	0 - 8.78	8.78	719285	3634109	246	0	-90	775	3,047	79	328	1,391	887	179
Lazer Creek	26-DPLC-004	0.14	8.26 - 10.67	2.41	719294	3634112	246	0	-90	72	240	3	13	72	112	11
Lazer Creek	26-DPLC-005	0.64	4.21 - 4.39	0.18	719271	3634092	244	0	-90	358	1,207	9	40	166	472	26
Lazer Creek	26-DPLC-006	0.11	0 - 1.52	1.52	719280	3634095	245	0	-90	49	171	4	16	77	104	16
Lazer Creek	26-DPLC-006	0.66	5 - 5.49	0.49	719280	3634095	245	0	-90	385	1,266	12	55	210	584	24
Lazer Creek	26-DPLC-007	0.23	0 - 8.32	8.32	719290	3634099	246	0	-90	119	388	6	26	105	198	23
Lazer Creek	26-DPLC-008	0.71	5.88 - 6.13	0.24	719299	3634104	246	0	-90	364	1,147	13	62	338	544	26
Lazer Creek	26-DPLC-009	0.11	1.52 - 2.53	1.01	719275	3634082	245	0	-90	42	137	2	8	35	123	9
Lazer Creek	26-DPLC-009A	0.08	0 - 4.27	4.27	719275	3634082	245	0	-90	45	136	2	9	40	62	10
Lazer Creek	26-DPLC-010	0.45	2.65 - 2.9	0.24	719284	3634086	245	0	-90	234	751	6	26	107	352	30
Lazer Creek	26-DPLC-011	0.18	0 - 2.04	2.04	719294	3634090	246	0	-90	67	220	3	16	68	262	23
Lazer Creek	26-DPLC-012	0.13	1.43 - 7.62	6.19	719303	3634094	247	0	-90	65	226	5	23	156	81	15
Lazer Creek	26-DPLC-013	0.06	0 - 2.59	2.59	719280	3634073	245	0	-90	31	111	2	10	44	40	7
Lazer Creek	26-DPLC-014	0.16	0 - 1.95	1.95	719288	3634077	246	0	-90	57	194	3	13	64	193	18
Lazer Creek	26-DPLC-015	0.13	4.51 - 5.24	0.73	719298	3634081	246	0	-90	102	435	5	24	129	8	59
Lazer Creek	26-DPLC-016	0.11	1.52 - 7.62	6.1	719307	3634086	247	0	-90	48	168	5	27	196	63	13
Lazer Creek	26-DPLC-017	0.1	0 - 1.52	1.52	719290	3634122	245	0	-90	40	133	2	12	59	88	9
Lazer Creek	26-DPLC-018	0.04	0 - 12.19	12.19	719301	3634127	246	0	-90	23	83	1	7	36	25	8
Lazer Creek	26-DPLC-019	0.17	5.61 - 6.49	0.88	719248	3634090	243	0	-90	97	364	5	28	148	94	9
Lazer Creek	26-DPLC-020	0.06	0 - 2.56	2.56	719205	3634072	244	0	-90	31	109	1	7	31	44	5
Lazer Creek	26-DPLC-020A	0.06	0 - 2.23	2.23	719206	3634071	245	0	-90	27	96	1	6	27	48	7
Lazer Creek	26-DPLC-021	0.14	0 - 1.52	1.52	719146	3634046	242	0	-90	25	85	1	6	27	181	10
Lazer Creek	26-DPLC-022	0.17	0 - 2.46	2.46	719111	3634028	238	0	-90	100	339	3	16	71	105	15
Lazer Creek	26-DPLC-023	0.03	0 - 3.45	3.45	719067	3634012	232	0	-90	15	62	2	11	55	6	1
Lazer Creek	26-DPLC-024	0.05	0 - 2.21	2.21	719044	3634054	233	0	-90	19	70	2	9	43	25	4
Lazer Creek	26-DPLC-025	0.1	1.52 - 3.05	1.52	719090	3634074	239	0	-90	78	278	4	17	48	55	11
Lazer Creek	26-DPLC-026	0.05	0 - 3.78	3.78	719027	3634101	230	0	-90	22	85	2	13	64	11	6
Lazer Creek	26-DPLC-027	0.05	0 - 2.01	2.01	719030	3634146	229	0	-90	23	75	1	8	42	38	7
Lazer Creek	26-DPLC-028	0.21	2.71 - 3.18	0.46	719072	3634118	234	0	-90	130	427	6	32	156	123	18

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Lazer Creek	26-DPLC-029	0.04	0 - 5.49	5.49	719088	3633963	235	0	-90	15	65	2	13	69	4	1
Lazer Creek	26-DPLC-030	0.03	0 - 6.4	6.4	719117	3633923	234	0	-90	13	57	2	12	68	3	1
Lazer Creek	26-DPLC-031	0.2	3.05 - 3.57	0.52	719133	3633984	239	0	-90	89	304	3	13	57	252	10
Lazer Creek	26-DPLC-032	0.27	3.78 - 6.07	2.29	719154	3633944	237	0	-90	131	436	5	21	113	342	13
Lazer Creek	26-DPLC-033	0.06	0 - 11.58	11.58	719175	3633893	231	0	-90	25	87	2	10	54	47	9
Lazer Creek	26-DPLC-034	0.06	0 - 3.05	3.05	719216	3633804	225	0	-90	28	100	2	10	47	39	5
Lazer Creek	26-DPLC-035	0.28	1.52 - 2.96	1.43	719222	3633911	235	0	-90	151	506	4	15	66	317	11
Lazer Creek	26-DPLC-036	0.19	9.14 - 11.33	2.19	719280	3633786	226	0	-90	87	327	7	37	216	100	15
Lazer Creek	26-DPLC-037	0.13	3.96 - 8.14	4.18	719264	3633825	228	0	-90	61	252	5	28	173	15	8
Lazer Creek	26-DPLC-038	0.13	0 - 6.1	6.1	719240	3633868	232	0	-90	81	289	3	15	74	85	8
Lazer Creek	26-DPLC-039	0.22	0 - 3.81	3.81	719225	3634027	246	0	-90	109	343	3	13	58	206	8
Lazer Creek	26-DPLC-041	0.16	7.62 - 10.67	3.05	719267	3633936	239	0	-90	88	299	3	14	89	127	10
Lazer Creek	26-DPLC-042	0.16	0 - 3.25	3.25	719287	3633889	233	0	-90	105	369	4	21	96	55	9
Lazer Creek	26-DPLC-043	0.17	5.79 - 11.45	5.66	719308	3633844	230	0	-90	71	312	10	55	443	5	8
Lazer Creek	26-DPLC-044	0.24	5.18 - 5.39	0.2	719353	3633865	233	0	-90	154	489	5	22	99	217	9
Lazer Creek	26-DPLC-045	0.28	1.52 - 3.62	2.09	719333	3633910	234	0	-90	166	555	5	20	86	303	10
Lazer Creek	26-DPLC-046	0.21	2.5 - 8.81	6.32	719312	3633956	241	0	-90	108	375	4	21	111	156	4
Lazer Creek	26-DPLC-047	0.03	0 - 1.01	1.01	719291	3634001	245	0	-90	13	46	1	3	17	19	1
Lazer Creek	26-DPLC-048	0.21	1.04 - 1.7	0.67	719290	3634000	245	0	-90	87	294	3	12	58	279	4
Lazer Creek	26-DPLC-049	0.07	0 - 1.28	1.28	719294	3633998	245	0	-90	27	97	1	7	27	78	2
Lazer Creek	26-DPLC-050	0.22	4.57 - 6.53	1.96	719270	3634046	246	0	-90	138	535	11	59	267	6	1
Lazer Creek	26-DPLC-051	0.13	4.57 - 6.1	1.52	719316	3634067	245	0	-90	109	458	2	10	42	57	8
Lazer Creek	26-DPLC-051	0.51	9.14 - 10.52	1.37	719316	3634067	245	0	-90	255	859	7	30	139	526	27
Lazer Creek	26-DPLC-052	0.05	0 - 10.49	10.49	719337	3634022	239	0	-90	29	107	2	12	62	34	9
Lazer Creek	26-DPLC-053	0.06	0 - 14.33	14.33	719357	3633976	238	0	-90	30	107	2	10	58	51	11
Lazer Creek	26-DPLC-054	0.14	1.52 - 3.05	1.52	719378	3633931	237	0	-90	68	236	2	10	44	154	10
Lazer Creek	26-DPLC-055	0.06	0 - 9.6	9.6	719399	3633886	236	0	-90	35	137	3	15	87	28	5
Lazer Creek	26-DPLC-056	0.11	6.1 - 7.62	1.52	719445	3633907	235	0	-90	56	202	4	18	89	113	14
Lazer Creek	26-DPLC-057	0.13	3.05 - 4.57	1.52	719424	3633952	237	0	-90	71	261	4	17	81	112	14

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Lazer Creek	26-DPLC-058	0.06	0 - 14.1	14.1	719403	3633997	239	0	-90	30	107	2	8	40	51	10
Lazer Creek	26-DPLC-059	0.06	0 - 13.05	13.05	719382	3634042	243	0	-90	29	99	2	9	44	44	8
Lazer Creek	26-DPLC-060	0.63	9.14 - 9.85	0.7	719360	3634088	245	0	-90	326	1,082	8	35	150	579	30
Lazer Creek	26-DPLC-061	0.28	10.79 - 12.19	1.4	719406	3634109	247	0	-90	116	384	4	26	135	263	18
Lazer Creek	26-DPLC-061	0.42	8.2 - 8.47	0.27	719406	3634109	247	0	-90	181	604	10	63	483	358	55
Lazer Creek	26-DPLC-062	0.1	0 - 0.46	0.46	719450	3634130	247	0	-90	49	167	3	14	73	61	8
Lazer Creek	26-DPLC-062	0.18	4.57 - 13.72	9.14	719450	3634130	247	0	-90	98	342	4	24	140	98	9
Lazer Creek	26-DPLC-063	0.23	3.05 - 4.57	1.52	719451	3634130	247	0	-90	141	512	4	20	102	160	15
Lazer Creek	26-DPLC-064	0.43	0 - 7.8	7.8	719494	3634143	243	0	-90	223	754	7	33	157	406	11
Lazer Creek	26-DPLC-065	0.04	0 - 11.68	11.68	719340	3634134	248	0	-90	23	80	2	9	52	32	7
Lazer Creek	26-DPLC-066	0.14	3.75 - 4.57	0.82	719386	3634154	251	0	-90	28	144	12	78	669	2	1
Lazer Creek	26-DPLC-067	0.12	13.72 - 14.83	1.12	719429	3634174	250	0	-90	50	178	5	30	214	88	5
Lazer Creek	26-DPLC-067	0.19	4.57 - 10.67	6.1	719429	3634174	250	0	-90	93	353	9	53	353	80	16
Lazer Creek	26-DPLC-067	0.23	0 - 3.05	3.05	719429	3634174	250	0	-90	86	288	4	20	104	247	24
Lazer Creek	26-DPLC-068	0.11	0 - 4.57	4.57	719472	3634197	247	0	-90	62	222	4	24	146	29	5
Lazer Creek	26-DPLC-069	0.31	0 - 6.88	6.88	719367	3634199	254	0	-90	186	617	5	22	84	132	16
Lazer Creek	26-DPLC-070	0.18	0 - 6.1	6.1	719410	3634221	253	0	-90	87	298	3	14	73	99	6
Lazer Creek	26-DPLC-070	0.26	9.14 - 17.43	8.28	719410	3634221	253	0	-90	129	446	7	36	207	148	5
Lazer Creek	26-DPLC-071	0.15	0 - 8.23	8.23	719441	3634250	250	0	-90	69	239	4	21	117	87	5
Lazer Creek	26-DPLC-071	0.27	15.24 - 15.93	0.69	719441	3634250	250	0	-90	149	520	7	41	241	104	4
Lazer Creek	26-DPLC-072	0.19	6.25 - 7.9	1.65	719343	3634247	254	0	-90	90	310	5	30	197	147	6
Lazer Creek	26-DPLC-073	0.14	7.62 - 9.14	1.52	719430	3634066	243	0	-90	68	257	3	14	78	110	9
Lazer Creek	26-DPLC-074	0.47	9.72 - 10.34	0.62	719321	3634181	249	0	-90	225	874	11	60	333	233	15
Lazer Creek	26-DPLC-075	0.11	7.62 - 9.02	1.4	719273	3634157	244	0	-90	56	211	2	10	47	80	8
Lazer Creek	26-DPLC-075	0.16	3.05 - 4.57	1.52	719273	3634157	244	0	-90	92	341	3	15	65	85	20
Lazer Creek	26-DPLC-076	0.22	14.29 - 15.73	1.43	719226	3634135	240	0	-90	138	478	3	15	79	134	13
Lazer Creek	26-DPLC-076	0.37	0.7 - 7.04	6.34	719226	3634135	240	0	-90	199	751	8	37	175	240	16
Lazer Creek	26-DPLC-076	0.78	11.03 - 12.19	1.16	719226	3634135	240	0	-90	441	1,493	11	48	199	725	20
Lazer Creek	26-DPLC-077	0.21	4.57 - 11.58	7.01	719208	3634184	243	0	-90	106	379	5	24	129	145	13

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Lazer Creek	26-DPLC-077	0.25	12.92 - 13.65	0.73	719208	3634184	243	0	-90	130	463	6	31	166	185	15
Lazer Creek	26-DPLC-078	0.16	13.9 - 16.38	2.48	719253	3634202	246	0	-90	86	299	3	16	72	101	8
Lazer Creek	26-DPLC-078	0.37	9.81 - 10.46	0.64	719253	3634202	246	0	-90	241	841	10	50	220	174	24
Lazer Creek	26-DPLC-079	0.05	0 - 12.45	12.45	719297	3634225	250	0	-90	21	88	2	13	67	7	1
Lazer Creek	26-DPLC-080	0.03	0 - 9.45	9.45	719278	3634270	255	0	-90	15	53	1	8	48	10	6
Lazer Creek	26-DPLC-081	0.2	4.57 - 7.62	3.05	719233	3634247	250	0	-90	103	355	4	19	103	207	13
Lazer Creek	26-DPLC-082	0.23	3.99 - 8.47	4.48	719185	3634228	243	0	-90	120	418	5	25	126	208	13
Lazer Creek	26-DPLC-083	0.24	4.57 - 5.79	1.22	719092	3634187	233	0	-90	130	442	5	24	137	205	13
Lazer Creek	26-DPLC-084	0.44	4.82 - 9.14	4.33	719050	3634170	230	0	-90	228	736	6	24	112	385	14
Lazer Creek	26-DPLC-084	0.7	11.28 - 11.68	0.4	719050	3634170	230	0	-90	295	973	7	29	109	1,160	21
Lazer Creek	26-DPLC-085	0.29	11.28 - 13.41	2.13	719119	3634144	235	0	-90	131	433	4	17	86	285	24
Lazer Creek	26-DPLC-086	0.08	0.18 - 0.79	0.6	719135	3634095	240	0	-90	48	158	2	9	35	83	9
Lazer Creek	26-DPLC-087	0.1	0.67 - 1.37	0.7	719135	3634093	240	0	-90	65	233	4	17	70	89	21
Lazer Creek	26-DPLC-088	0.03	0 - 4.95	4.95	719005	3634145	226	0	-90	13	56	2	10	52	8	5
Lazer Creek	26-DPLC-089	0.24	3.35 - 6.1	2.74	719141	3634209	235	0	-90	141	484	5	25	122	124	9
Lazer Creek	26-DPLC-090	0.32	6.49 - 9.8	3.31	719050	3634164	230	0	-90	125	422	4	19	95	414	13
Lazer Creek	26-DPLC-091	0.32	5.12 - 12.5	7.38	719055	3634169	230	0	-90	178	597	5	21	103	254	12
Lazer Creek	26-DPLC-092	0.69	5.58 - 5.82	0.24	719044	3634168	229	0	-90	254	865	8	42	196	827	36
Lazer Creek	26-DPLC-093	0.58	2.93 - 9.5	6.57	719059	3634171	231	0	-90	291	982	7	29	133	569	16
Lazer Creek	26-DPLC-094	0.1	3.05 - 4.18	1.13	719055	3634165	231	0	-90	45	157	2	13	73	90	12
Lazer Creek	26-DPLC-095	0.41	4.57 - 10.31	5.74	719064	3634171	231	0	-90	222	749	5	24	116	360	16
Lazer Creek	26-DPLC-096	0.33	6.1 - 11.31	5.21	719069	3634171	232	0	-90	166	555	4	17	84	335	13
Lazer Creek	26-DPLC-097	0.12	2.62 - 3.05	0.43	719064	3634166	232	0	-90	51	180	3	13	66	110	10
Lazer Creek	26-DPLC-097	0.53	5.09 - 6.1	1.01	719064	3634166	232	0	-90	241	783	8	35	201	611	16
Lazer Creek	26-DPLC-098	0.27	2.62 - 2.99	0.37	719288	3633916	236	0	-90	163	563	4	18	88	324	17
Lazer Creek	26-DPLC-099	0.2	6.71 - 9.6	2.9	719281	3633804	226	0	-90	102	391	8	41	239	91	6
Lazer Creek	26-DPLC-100	0.11	0 - 6.1	6.1	719212	3633945	239	0	-90	63	223	3	15	84	69	7
Lazer Creek	26-DPLC-100	0.47	7.62 - 9.57	1.95	719212	3633945	239	0	-90	189	619	13	67	490	472	18
Lazer Creek	26-DPLC-101	0.13	4.57 - 6.1	1.52	719164	3633964	239	0	-90	64	211	5	26	154	120	7

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Lazer Creek	26-DPLC-102	0.06	0 - 2.82	2.82	719205	3634010	245	0	-90	25	85	2	8	41	70	7
Lazer Creek	26-DPLC-103	0.05	0 - 2.13	2.13	719415	3634123	248	0	-90	24	89	2	9	43	44	9
Lazer Creek	26-DPLC-104	0.05	0 - 5.79	5.79	719407	3634115	247	0	-90	26	98	2	10	56	39	8
Lazer Creek	26-DPLC-105	0.05	0 - 5.49	5.49	719407	3634092	246	0	-90	25	91	1	7	36	32	5
Lazer Creek	26-DPLC-106	0.13	6.1 - 7.16	1.07	719403	3634063	244	0	-90	76	285	7	34	170	75	22
Lazer Creek	26-DPLC-107	0.21	1.28 - 2.13	0.85	719384	3634017	241	0	-90	96	322	3	10	41	259	15
Lazer Creek	26-DPLC-108	0.15	0 - 1.58	1.58	719335	3634037	242	0	-90	81	271	3	13	58	123	13
Lazer Creek	26-DPLC-109	0.05	0 - 5.79	5.79	719358	3634087	245	0	-90	30	108	1	7	34	33	8
Lazer Creek	26-DPLC-110	0.14	4.24 - 7.62	3.38	719289	3634048	246	0	-90	71	286	10	55	396	3	10
Lazer Creek	26-DPLC-111	0.07	0 - 7.47	7.47	719355	3634108	246	0	-90	35	132	3	18	123	33	11
Lazer Creek	26-DPLC-112	0.02	0 - 4.57	4.57	719371	3634142	249	0	-90	13	52	1	4	26	4	6
Lazer Creek	26-DPLC-113	0.67	3.93 - 4.21	0.27	719310	3634097	247	0	-90	387	1,341	9	42	175	475	23
Lazer Creek	26-DPLC-114	0.04	0 - 7.32	7.32	719314	3634125	247	0	-90	24	90	1	7	38	17	8
Lazer Creek	26-DPLC-115	0.13	2.44 - 7.32	4.88	719280	3634170	245	0	-90	76	252	3	17	86	85	8
Lazer Creek	26-DPLC-116	0.43	1.86 - 4.88	3.02	719267	3634142	243	0	-90	237	828	11	54	252	226	24
Lazer Creek	26-DPLC-117	0.15	0 - 1.83	1.83	719239	3634077	244	0	-90	75	241	3	12	48	113	7
Lazer Creek	26-DPLC-118	0.15	2.29 - 4.27	1.98	719231	3634049	246	0	-90	94	322	4	22	100	10	2
Lazer Creek	26-DPLC-119	0.18	1.4 - 3.35	1.95	719220	3634021	246	0	-90	86	272	2	10	49	231	6
Lazer Creek	26-DPLC-120	0.07	0 - 2.13	2.13	719205	3634014	245	0	-90	32	103	2	7	31	91	7
Lazer Creek	26-DPLC-121	0.07	0 - 2.9	2.9	719084	3634088	238	0	-90	37	129	2	9	47	53	14
Lazer Creek	26-DPLC-122	0.05	0 - 2.74	2.74	719073	3634108	236	0	-90	29	102	1	7	30	35	8
Lazer Creek	26-DPLC-123	0.06	0 - 1.98	1.98	719053	3634131	231	0	-90	29	96	2	8	46	56	9
Lazer Creek	26-DPLC-124	0.04	0 - 1.22	1.22	719012	3634146	227	0	-90	26	83	2	8	47	16	8
Lazer Creek	26-DPLC-125	0.04	0 - 1.83	1.83	718991	3634129	225	0	-90	18	67	1	7	42	28	5
Lazer Creek	26-DPLC-126	0.05	0 - 1.68	1.68	718965	3634120	223	0	-90	20	81	2	13	78	12	2
Lazer Creek	26-DPLC-127	0.05	0 - 2.13	2.13	719063	3634122	233	0	-90	23	80	1	7	42	40	10
Lazer Creek	26-DPLC-128	0.07	0 - 6.71	6.71	719057	3634157	231	0	-90	32	110	2	10	61	49	6
Lazer Creek	26-DPLC-129	0.88	8.29 - 8.53	0.24	719085	3634195	229	0	-90	550	1,820	14	65	325	480	31
Lazer Creek	26-DPLC-130	0.98	6.1 - 9.14	3.05	719068	3634174	231	0	-90	544	1,730	11	48	236	1,013	28

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Lazer Creek	26-DPLC-131	0.05	0 - 4.57	4.57	719123	3634181	236	0	-90	25	84	1	8	41	47	7
Lazer Creek	26-DPLC-132	0.06	0 - 4.57	4.57	719115	3634158	236	0	-90	26	86	1	8	39	53	7
Lazer Creek	26-DPLC-133	0.03	0 - 5.49	5.49	719370	3633942	237	0	-90	15	53	1	4	16	16	3
Lazer Creek	26-DPLC-134	0.15	3.05 - 5.49	2.44	719355	3633893	234	0	-90	99	327	3	14	60	101	9
Lazer Creek	26-DPLC-135	0.47	3.81 - 4.88	1.07	719346	3633871	233	0	-90	309	1,007	11	51	230	481	13
Lazer Creek	26-DPLC-136	0.25	0 - 5.49	5.49	719312	3633920	236	0	-90	155	565	7	37	167	106	7
Lazer Creek	26-DPLC-137	0.34	0 - 3.05	3.05	719318	3633938	237	0	-90	211	709	5	22	81	291	10
Lazer Creek	26-DPLC-138	0.14	0 - 3.05	3.05	719300	3633890	232	0	-90	76	273	3	17	80	79	10
Lazer Creek	26-DPLC-139	0.05	0 - 2.13	2.13	719245	3633887	233	0	-90	18	63	1	5	32	73	6
Lazer Creek	26-DPLC-140	0.21	0.82 - 3.05	2.23	719252	3633910	235	0	-90	85	288	2	10	48	233	7
Lazer Creek	26-DPLC-141	0.07	0 - 2.44	2.44	719256	3633932	238	0	-90	36	125	2	10	51	58	6
Lazer Creek	26-DPLC-142	0.1	0.67 - 1.77	1.1	719272	3633953	241	0	-90	39	130	2	8	43	159	4
Lazer Creek	26-DPLC-143	0.16	0 - 2.74	2.74	719229	3633977	242	0	-90	75	253	2	11	54	170	8
Lazer Creek	26-DPLC-144	0.06	0 - 3.05	3.05	719236	3633999	245	0	-90	24	78	1	6	31	73	3
Lazer Creek	26-DPLC-145	0.42	1.52 - 5.18	3.66	719322	3633964	240	0	-90	231	790	6	24	111	483	13
Lazer Creek	26-DPLC-200	0.47	6.4 - 6.86	0.46	719148	3633927	235	0	-90	215	709	6	28	143	586	17
Lazer Creek	26-DPLC-201	0.53	4.57 - 6.1	1.52	719216	3633954	240	0	-90	254	843	7	33	164	683	13
Lazer Creek	26-DPLC-202	0.13	0 - 6.1	6.1	719207	3633931	237	0	-90	63	217	2	12	61	91	5
Lazer Creek	26-DPLC-202	0.49	12.95 - 13.72	0.76	719207	3633931	237	0	-90	210	753	6	31	204	639	36
Lazer Creek	26-DPLC-210	0.31	4.57 - 8.84	4.27	719058	3634168	231	0	-90	122	452	3	14	65	276	10
Lazer Creek	26-DPLC-211	0.23	3.05 - 6.46	3.41	719061	3634169	231	0	-90	116	440	4	18	99	182	8
Lazer Creek	26-DPLC-212	0.07	0 - 2.74	2.74	719067	3634170	232	0	-90	29	114	2	9	49	66	7
Lazer Creek	26-DPLC-213	0.06	0 - 2.9	2.9	719066	3634170	232	0	-90	27	98	2	8	45	56	7
Lazer Creek	26-DPLC-214	0.06	0 - 4.57	4.57	719059	3634174	230	0	-90	28	93	2	8	45	56	7
Lazer Creek	26-DPLC-215	0.11	0 - 0.91	0.91	719298	3633926	237	0	-90	44	152	2	12	66	53	7
Lazer Creek	26-DPLC-216	0.08	0 - 3.66	3.66	719301	3633925	237	0	-90	43	145	2	14	83	29	5
Lazer Creek	26-DPLC-217	0.22	0 - 5.18	5.18	719307	3633920	236	0	-90	119	445	8	40	208	92	5
Lazer Creek	26-DPLC-218	0.23	0 - 3.05	3.05	719317	3633926	236	0	-90	127	444	6	28	131	179	6
Lazer Creek	26-DPLC-219	0.2	0 - 3.05	3.05	719318	3633927	236	0	-90	117	418	6	28	132	107	5

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Lazer Creek	26-DPLC-220	0.09	0 - 1.83	1.83	719328	3633936	236	0	-90	34	115	1	7	34	140	6
Lazer Creek	26-DPLC-221	0.38	0.76 - 3.35	2.59	719329	3633936	236	0	-90	232	712	5	22	95	368	12
Lazer Creek	26-DPLC-222	0.17	1.52 - 2.44	0.91	719335	3633930	236	0	-90	95	323	4	18	92	109	9
Lazer Creek	26-DPLC-223	0.1	0 - 0.91	0.91	719330	3633926	236	0	-90	39	136	2	9	47	111	7
Lazer Creek	26-DPLC-224	0.17	0 - 2.44	2.44	719326	3633921	235	0	-90	90	315	4	18	82	132	7
Lazer Creek	26-DPLC-225	0.14	0 - 1.83	1.83	719316	3633913	235	0	-90	72	265	3	14	62	110	6
Lazer Creek	26-DPLC-226	0.11	0 - 1.83	1.83	719318	3633914	235	0	-90	45	161	2	9	41	114	6
Lazer Creek	26-DPLC-227	0.17	0 - 1.98	1.98	719306	3633957	241	0	-90	80	296	3	15	68	133	5
Lazer Creek	26-DPLC-228	0.2	2.53 - 3.66	1.13	719313	3633962	241	0	-90	76	292	4	17	77	231	7
Lazer Creek	26-DPLC-229	0.12	0 - 5.49	5.49	719306	3633940	239	0	-90	60	239	4	19	92	56	4
Lazer Creek	26-DPLC-230	0.21	0 - 3.66	3.66	719331	3633946	237	0	-90	102	382	4	19	88	206	7
Lazer Creek	26-DPLC-231	0.28	1.86 - 3.96	2.1	719343	3633936	236	0	-90	158	572	5	20	79	235	8
Lazer Creek	26-DPLC-232	0.67	3.32 - 4.27	0.95	719351	3633943	236	0	-90	356	1,266	8	32	133	815	13
Lazer Creek	26-DPLC-233	0.05	0 - 4.27	4.27	719345	3633951	236	0	-90	22	86	2	10	50	27	6
Lazer Creek	26-DPLC-234	0.12	0 - 2.71	2.71	719334	3633912	234	0	-90	55	202	3	12	56	123	11
Lazer Creek	26-DPLC-235	0.05	0 - 5.64	5.64	719356	3633944	236	0	-90	23	91	3	15	82	21	5
Newbill	26-DPNB-001	0.12	0 - 4.57	4.57	722109	3630854	230	0	-90	57	230	3	17	91	44	7
Newbill	26-DPNB-002	0.18	4.85 - 6.22	1.38	722093	3630865	230	0	-90	97	379	6	30	140	68	14
Newbill	26-DPNB-003	0.15	0 - 7.62	7.62	722100	3630883	228	0	-90	84	327	4	21	110	85	12
Newbill	26-DPNB-003	0.21	8.69 - 12.04	3.35	722100	3630883	228	0	-90	104	397	3	17	99	50	25
Newbill	26-DPNB-004	0.15	0 - 6.1	6.1	722112	3630893	227	0	-90	77	293	4	18	92	71	17
Newbill	26-DPNB-004	0.23	9.11 - 10.87	1.76	722112	3630893	227	0	-90	112	421	5	23	133	69	59
Newbill	26-DPNB-005	0.16	0 - 10.3	10.3	722103	3630893	228	0	-90	80	305	4	19	93	96	15
Newbill	26-DPNB-006	0.12	0 - 1.52	1.52	722105	3630898	228	0	-90	61	218	2	12	54	85	14
Newbill	26-DPNB-006	0.31	4.57 - 7.65	3.08	722105	3630898	228	0	-90	167	636	9	46	264	125	54
Newbill	26-DPNB-007	0.19	1.52 - 7.67	6.15	722107	3630902	227	0	-90	96	360	5	26	153	49	23
Newbill	26-DPNB-008	0.17	3.17 - 6.4	3.23	722108	3630908	226	0	-90	90	335	6	32	187	43	89
Newbill	26-DPNB-009	0.16	4.57 - 8.97	4.4	722109	3630913	226	0	-90	77	279	4	18	97	50	23
Newbill	26-DPNB-010	0.06	0 - 12.32	12.32	722112	3630922	225	0	-90	28	99	2	13	83	42	15

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Newbill	26-DPNB-011	0.04	0 - 2.62	2.62	722118	3630945	225	0	-90	19	65	1	8	51	33	11
Newbill	26-DPNB-012	0.18	4.57 - 6.1	1.52	722123	3630970	224	0	-90	86	323	6	35	186	62	23
Newbill	26-DPNB-013	0.18	4.57 - 7.16	2.59	722065	3630876	231	0	-90	92	351	5	27	133	61	18
Newbill	26-DPNB-014	0.15	0 - 5.61	5.61	722065	3630899	230	0	-90	73	278	5	25	136	62	11
Newbill	26-DPNB-015	0.16	0 - 7.49	7.49	722071	3630916	229	0	-90	81	309	5	27	159	62	15
Newbill	26-DPNB-016	0.13	0 - 1.52	1.52	722079	3630935	228	0	-90	50	183	3	18	107	97	18
Newbill	26-DPNB-016	0.22	3.54 - 5.92	2.38	722079	3630935	228	0	-90	107	402	4	19	97	72	13
Newbill	26-DPNB-017	0.2	0 - 5.39	5.39	722090	3630953	227	0	-90	104	386	5	25	137	67	16
Newbill	26-DPNB-018	0.15	0 - 2.84	2.84	722089	3630956	227	0	-90	75	279	3	18	107	55	13
Newbill	26-DPNB-019	0.17	0 - 2.9	2.9	722090	3630969	226	0	-90	85	317	4	22	109	54	12
Newbill	26-DPNB-019	0.34	5.09 - 5.58	0.49	722090	3630969	226	0	-90	173	624	6	30	176	37	20
Newbill	26-DPNB-020	0.15	0 - 1.83	1.83	722088	3630979	226	0	-90	72	267	4	24	110	78	17
Newbill	26-DPNB-020	0.17	5.97 - 7.92	1.95	722088	3630979	226	0	-90	70	261	4	20	118	57	15
Newbill	26-DPNB-021	0.11	0 - 4.63	4.63	722087	3630986	225	0	-90	53	189	3	15	62	64	15
Newbill	26-DPNB-022	0.04	0 - 4.57	4.57	722088	3630999	225	0	-90	19	68	1	8	45	34	14
Newbill	26-DPNB-023	0.05	0 - 12.34	12.34	722081	3631021	223	0	-90	22	83	2	9	43	29	10
Newbill	26-DPNB-024	0.17	7.62 - 10.67	3.05	722078	3631039	222	0	-90	76	288	4	19	90	70	15
Newbill	26-DPNB-025	0.04	0 - 13.79	13.79	722067	3631057	221	0	-90	18	67	1	7	40	31	9
Newbill	26-DPNB-026	0.04	0 - 12.7	12.7	722058	3631071	221	0	-90	21	83	2	8	47	29	8
Newbill	26-DPNB-027	0.05	0 - 9.96	9.96	722051	3631036	221	0	-90	25	90	1	7	37	35	7
Newbill	26-DPNB-028	0.05	0 - 11.45	11.45	722064	3631018	222	0	-90	24	87	2	9	49	27	14
Newbill	26-DPNB-029	0.2	5.55 - 9.04	3.5	722100	3630892	228	0	-90	112	389	5	24	136	105	24
Newbill	26-DPNB-029	0.23	0 - 3.05	3.05	722100	3630892	228	0	-90	129	453	6	27	125	215	18
Newbill	26-DPNB-030	0.16	0 - 3.05	3.05	721552	3630960	228	0	-90	107	331	3	14	47	82	27
Newbill	26-DPNB-031	0.24	0 - 3.66	3.66	721563	3630943	227	0	-90	179	625	8	36	160	124	22
Newbill	26-DPNB-032	0.11	3.05 - 4.57	1.52	721571	3630958	228	0	-90	80	288	4	19	92	53	11
Newbill	26-DPNB-035	0.22	3.05 - 6.1	3.05	721584	3630942	226	0	-90	118	492	15	83	576	3	17
Newbill	26-DPNB-036	0.31	0 - 7.09	7.09	721578	3630941	226	0	-90	156	687	20	109	775	47	29
Newbill	26-DPNB-037	0.44	0 - 4.57	4.57	721571	3630938	226	0	-90	275	1,013	14	68	365	436	45

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Newbill	26-DPNB-038	0.18	0 - 3.05	3.05	721562	3630933	226	0	-90	120	446	6	29	142	114	18
Newbill	26-DPNB-039	0.17	0 - 8.25	8.25	721565	3630923	225	0	-90	115	438	6	27	120	91	29
Newbill	26-DPNB-040	0.61	1.52 - 4.05	2.53	721573	3630925	225	0	-90	427	1,661	37	193	1,096	7	122
Newbill	26-DPNB-041	0.16	3.05 - 6.1	3.05	721589	3630932	225	0	-90	75	315	12	68	450	3	3
Newbill	26-DPNB-042	0.04	0 - 9.47	9.47	721606	3630922	224	0	-90	17	68	2	13	68	6	6
Newbill	26-DPNB-043	0.04	0 - 11.99	11.99	721592	3630921	224	0	-90	20	80	3	17	95	4	18
Newbill	26-DPNB-044	0.24	1.16 - 4.91	3.75	721571	3630914	224	0	-90	177	643	15	74	376	7	107
Newbill	26-DPNB-045	0.15	0 - 6.25	6.25	721568	3630908	223	0	-90	99	372	9	47	259	16	76
Newbill	26-DPNB-046	0.11	7.62 - 9.24	1.62	721562	3630911	224	0	-90	53	199	2	10	42	80	18
Newbill	26-DPNB-046	0.25	0 - 2.93	2.93	721562	3630911	224	0	-90	196	766	12	60	256	38	91
Newbill	26-DPNB-047	0.17	1.74 - 4.57	2.83	721573	3630900	223	0	-90	106	433	10	53	287	4	25
Newbill	26-DPNB-048	0.38	0 - 3.05	3.05	721570	3630932	225	0	-90	336	1,254	17	84	324	43	113
Newbill	26-DPNB-049	0.33	0 - 4.44	4.44	721570	3630942	226	0	-90	209	833	13	67	358	232	21
Newbill	26-DPNB-050	0.47	0 - 3.78	3.78	721576	3630937	225	0	-90	285	1,057	17	89	535	411	73
Pipeline	26-DPPL-001	0.04	0 - 9.45	9.45	713767	3632261	260	0	-90	22	79	1	7	28	36	5
Pipeline	26-DPPL-002	0.04	0 - 2.74	2.74	713775	3632213	258	0	-90	18	66	1	8	41	63	6
Pipeline	26-DPPL-003	0.05	0 - 6.71	6.71	713774	3632214	258	0	-90	26	94	2	9	46	60	6
Pipeline	26-DPPL-004	0.1	4.57 - 5.18	0.61	713778	3632233	259	0	-90	49	187	4	21	121	101	10
Pipeline	26-DPPL-005	0.19	3.05 - 4.57	1.52	713766	3632182	256	0	-90	150	559	8	37	141	60	13
Pipeline	26-DPPL-006	0.05	0 - 5.79	5.79	713810	3632229	255	0	-90	23	80	2	8	45	49	12
Pipeline	26-DPPL-007	0.06	0 - 5.94	5.94	713802	3632193	253	0	-90	32	116	2	12	64	44	9
Pipeline	26-DPPL-008	0.06	0 - 8.23	8.23	713827	3632212	253	0	-90	30	107	2	12	64	56	11
Pipeline	26-DPPL-009	0.05	0 - 6.71	6.71	713825	3632188	250	0	-90	29	109	2	11	57	37	9
Pipeline	26-DPPL-010	0.47	1.52 - 1.83	0.3	713798	3632170	250	0	-90	280	919	5	16	55	987	14
Pipeline	26-DPPL-011	0.11	0 - 0.94	0.94	713804	3632150	251	0	-90	56	198	2	10	57	193	8
Pipeline	26-DPPL-012	0.13	0 - 1.01	1.01	713780	3632154	251	0	-90	62	237	2	10	50	221	7
Pipeline	26-DPPL-012	0.23	1.83 - 2.59	0.76	713780	3632154	251	0	-90	121	461	3	15	63	478	10
Pipeline	26-DPPL-013	0.08	0 - 5.79	5.79	713769	3632128	254	0	-90	47	177	2	12	55	57	6
Pipeline	26-DPPL-014	0.07	0 - 5.18	5.18	713786	3632156	251	0	-90	39	144	2	11	55	74	8

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Pipeline	26-DPPL-015	0.28	2.23 - 3.78	1.55	713776	3632154	252	0	-90	164	574	6	27	142	557	15
Pipeline	26-DPPL-016	0.13	0 - 1.25	1.25	713799	3632150	251	0	-90	68	246	2	8	41	248	7
Pipeline	26-DPPL-017	0.06	0 - 5.49	5.49	713822	3632141	252	0	-90	34	118	2	10	50	63	8
Pipeline	26-DPPL-018	0.06	0 - 4.57	4.57	713794	3632152	251	0	-90	35	125	2	10	43	53	7
Pipeline	26-DPPL-019	0.31	1.83 - 2.13	0.3	713811	3632166	250	0	-90	169	591	3	12	54	733	12
Pipeline	26-DPPL-020	0.05	0 - 4.27	4.27	713796	3632115	254	0	-90	29	112	2	9	37	38	8
Pipeline	26-DPPL-022	0.16	3.05 - 3.66	0.61	713835	3632073	254	0	-90	81	307	5	24	125	97	10
Pipeline	26-DPPL-023	0.13	3.96 - 4.27	0.31	713825	3632055	254	0	-90	54	208	3	19	114	110	7
Pipeline	26-DPPL-024	0.12	0 - 0.52	0.52	713792	3632099	256	0	-90	62	208	2	9	43	158	9
Pipeline	26-DPPL-024	0.17	4.18 - 6.86	2.68	713792	3632099	256	0	-90	113	416	6	28	134	108	12
Pipeline	26-DPPL-025	0.3	4.88 - 5.49	0.61	713808	3632087	256	0	-90	162	616	10	54	301	145	21
Pipeline	26-DPPL-026	0.04	0 - 5.36	5.36	713819	3632035	254	0	-90	19	70	1	7	40	24	6
Pipeline	26-DPPL-027	0.17	1.04 - 3.05	2.01	713858	3632047	251	0	-90	92	349	4	22	111	93	13
Pipeline	26-DPPL-028	0.11	0.7 - 2.26	1.55	713846	3632072	252	0	-90	49	177	3	15	73	80	10
Pipeline	26-DPPL-028	0.17	4.57 - 5.49	0.91	713846	3632072	252	0	-90	92	373	7	34	194	104	14
Pipeline	26-DPPL-029	0.06	0 - 5.49	5.49	713841	3632102	252	0	-90	30	110	2	9	35	45	8
Pipeline	26-DPPL-030	0.06	0 - 3.96	3.96	713850	3632123	250	0	-90	32	122	2	10	48	67	8
Pipeline	26-DPPL-031	0.12	0.58 - 3.9	3.32	713888	3632062	250	0	-90	64	245	4	20	112	70	39
Pipeline	26-DPPL-032	0.05	0 - 6.71	6.71	713877	3632092	250	0	-90	27	97	2	10	53	29	7
Pipeline	26-DPPL-033	0.05	0 - 5.18	5.18	713869	3632117	250	0	-90	25	97	2	9	40	36	11
Pipeline	26-DPPL-034	0.05	0 - 4.27	4.27	713850	3632142	250	0	-90	26	92	2	10	60	49	8
Pipeline	26-DPPL-035	0.06	0 - 4.42	4.42	713838	3632158	249	0	-90	31	118	2	12	55	41	7
Pipeline	26-DPPL-036	0.05	0 - 6.1	6.1	713845	3632185	249	0	-90	26	105	2	13	71	36	13
Pipeline	26-DPPL-037	0.23	0 - 0.97	0.97	713874	3632197	250	0	-90	123	441	3	11	49	466	10
Pipeline	26-DPPL-038	0.07	0 - 3.66	3.66	713869	3632171	247	0	-90	34	128	2	8	41	79	7
Pipeline	26-DPPL-039	0.05	0 - 7.01	7.01	713889	3632139	248	0	-90	23	88	2	12	70	33	11
Pipeline	26-DPPL-040	0.04	0 - 3.96	3.96	713903	3632104	248	0	-90	21	81	1	6	27	23	7
Pipeline	26-DPPL-041	0.05	0 - 8.84	8.84	713822	3632271	255	0	-90	24	88	2	9	48	35	8
Pipeline	26-DPPL-042	0.05	0 - 4.57	4.57	713809	3632303	253	0	-90	24	90	2	9	45	56	7

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Pipeline	26-DPPL-043	0.04	0 - 7.32	7.32	713818	3632324	254	0	-90	20	75	2	9	51	34	8
Pipeline	26-DPPL-044	0.03	0 - 7.47	7.47	713834	3632352	253	0	-90	15	62	2	10	52	14	4
Pipeline	26-DPPL-045	0.04	0 - 8.53	8.53	713827	3632352	254	0	-90	17	69	2	10	54	13	4
Pipeline	26-DPPL-046	0.03	0 - 5.49	5.49	713836	3632314	250	0	-90	16	60	1	6	34	30	8
Pipeline	26-DPPL-047	0.04	0 - 5.64	5.64	713779	3632312	256	0	-90	20	78	1	6	32	26	5
Pipeline	26-DPPL-048	0.05	0 - 4.42	4.42	713762	3632345	260	0	-90	28	109	2	10	60	27	11
Pipeline	26-DPPL-049	0.05	0 - 3.96	3.96	713783	3632388	257	0	-90	26	108	2	11	54	12	2
Pipeline	26-DPPL-050	0.02	0 - 2.9	2.9	713794	3632408	256	0	-90	7	30	1	4	20	9	5
Pipeline	26-DPPL-051	0.03	0 - 4.27	4.27	713798	3632410	256	0	-90	8	34	1	4	20	11	7
Pipeline	26-DPPL-052	0.05	0 - 5.49	5.49	713807	3632380	256	0	-90	22	98	2	13	77	13	3
Pipeline	26-DPPL-053	0.06	0 - 9.75	9.75	713804	3632357	257	0	-90	30	124	2	11	57	42	5
Pipeline	26-DPPL-054	0.2	0 - 0.79	0.79	713796	3632339	257	0	-90	99	398	3	12	63	486	12
Pipeline	26-DPPL-055	0.07	0 - 5.79	5.79	713783	3632367	258	0	-90	39	164	3	16	84	44	6
Pipeline	26-DPPLE-001	0.14	3.05 - 4.57	1.52	714657	3631990	268	0	-90	69	279	6	28	148	54	16
Pipeline	26-DPPLE-002	0.06	0 - 8.99	8.99	714636	3631993	267	0	-90	29	108	2	8	45	53	12
Pipeline	26-DPPLE-003	0.06	0 - 8.84	8.84	714632	3631991	267	0	-90	28	105	2	9	50	52	15
Pipeline	26-DPPLE-004	0.07	0 - 7.77	7.77	714606	3631998	267	0	-90	28	116	3	17	109	58	16
Pipeline	26-DPPLE-005	0.18	3.2 - 7.62	4.42	714593	3632014	267	0	-90	101	377	6	28	140	161	22
Pipeline	26-DPPLE-006	0.11	0 - 4.57	4.57	714600	3632019	268	0	-90	49	183	2	9	43	89	11
Pipeline	26-DPPLE-007	0.11	6.1 - 7.62	1.52	714604	3632025	268	0	-90	79	327	4	18	95	51	13
Pipeline	26-DPPLE-007	0.22	0 - 3.05	3.05	714604	3632025	268	0	-90	122	448	3	13	57	303	18
Pipeline	26-DPPLE-008	0.11	6.55 - 8.48	1.93	714598	3632016	267	0	-90	60	258	5	27	159	56	16
Pipeline	26-DPPLE-009	0.1	3.05 - 8.63	5.59	714595	3632011	267	0	-90	53	216	4	19	110	53	15
Pipeline	26-DPPLE-010	0.16	0 - 1.52	1.52	714602	3632021	268	0	-90	55	212	2	7	32	205	12
Pipeline	26-DPPLE-011	0.14	0 - 3.05	3.05	714602	3632028	268	0	-90	71	269	3	12	61	174	15
Pipeline	26-DPPLE-012	0.17	0 - 6.71	6.71	714605	3632036	267	0	-90	91	361	4	18	89	201	17
Pipeline	26-DPPLE-013	0.13	4.57 - 7.16	2.59	714611	3632054	267	0	-90	71	297	4	20	110	94	12
Pipeline	26-DPPLE-014	0.21	2.47 - 7.32	4.85	714626	3632062	268	0	-90	119	538	7	34	191	33	9
Pipeline	26-DPPLE-015	0.2	3.05 - 7.01	3.96	714625	3632061	268	0	-90	117	524	7	38	218	30	15

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Pipeline	26-DPPLE-016	0.1	1.52 - 3.05	1.52	714629	3632045	268	0	-90	62	226	3	14	64	160	14
Pipeline	26-DPPLE-017	0.12	2.87 - 9.75	6.89	714621	3632031	268	0	-90	74	289	4	20	103	77	13
Pipeline	26-DPPLE-018	0.17	4.57 - 8.84	4.27	714635	3632039	269	0	-90	109	438	7	39	220	82	15
Pipeline	26-DPPLE-019	0.12	3.05 - 10.67	7.62	714639	3632025	269	0	-90	71	290	5	27	149	75	12
Pipeline	26-DPPLE-020	0.12	6.1 - 10.67	4.57	714635	3632012	269	0	-90	69	275	6	34	205	37	11
Pipeline	26-DPPLE-021	1.96	1.52 - 7.32	5.79	714621	3632014	268	0	-90	1,167	4,107	27	88	292	1,460	67
Pipeline	26-DPPLE-022	0.16	3.54 - 8.38	4.85	714619	3632016	268	0	-90	106	401	6	28	152	142	17
Pipeline	26-DPPLE-023	0.24	0 - 7.62	7.62	714612	3632019	268	0	-90	141	507	5	22	101	253	20
Pipeline	26-DPPLE-024	0.1	5.3 - 7.32	2.01	714631	3632008	269	0	-90	67	252	5	25	137	38	14
Pipeline	26-DPPLE-025	0.11	3.05 - 4.57	1.52	714644	3632010	269	0	-90	58	219	5	24	137	53	13
Pipeline	26-DPPLE-026	0.12	4.57 - 6.86	2.29	714651	3632034	269	0	-90	86	334	5	26	138	87	8
Pipeline	26-DPPLE-027	0.21	3.05 - 4.88	1.83	714649	3632043	269	0	-90	145	594	6	29	133	38	7
Pipeline	26-DPPLE-028	0.19	3.05 - 4.57	1.52	714647	3632061	269	0	-90	111	400	4	20	95	201	10
Pipeline	26-DPPLE-029	0.19	2.04 - 5.18	3.14	714603	3632073	268	0	-90	123	483	7	39	198	31	5
Pipeline	26-DPPLE-030	0.12	3.05 - 6.71	3.66	714602	3632063	267	0	-90	66	240	6	30	154	76	14
Pipeline	26-DPPLE-031	0.12	0.91 - 7.38	6.46	714598	3632053	266	0	-90	66	236	4	20	103	102	11
Pipeline	26-DPPLE-032	0.17	4.27 - 6.1	1.83	714593	3632044	266	0	-90	118	446	5	22	116	117	12
Pipeline	26-DPPLE-033	0.1	0 - 1.07	1.07	714581	3632052	265	0	-90	46	156	2	8	45	107	7
Pipeline	26-DPPLE-033	0.11	3.05 - 6.1	3.05	714581	3632052	265	0	-90	64	238	4	22	127	65	9
Pipeline	26-DPPLE-034	0.17	1.01 - 4.57	3.57	714570	3632059	264	0	-90	102	384	8	39	227	56	14
Pipeline	26-DPPLE-035	0.15	1.52 - 5.24	3.72	714569	3632043	265	0	-90	113	422	5	24	126	58	15
Pipeline	26-DPPLE-036	0.14	3.05 - 5.49	2.44	714563	3632036	265	0	-90	106	401	4	21	108	57	13
Pipeline	26-DPPLE-037	0.11	3.05 - 4.57	1.52	714559	3632021	265	0	-90	80	296	3	14	69	54	13
Pipeline	26-DPPLE-038	0.03	0 - 3.05	3.05	714578	3632088	267	0	-90	17	57	1	4	23	30	7
Pipeline	26-DPPLE-039	0.19	2.65 - 4.57	1.92	714666	3632032	270	0	-90	95	353	5	27	145	130	22
Pipeline	26-DPPLE-040	0.13	3.05 - 4.57	1.52	714675	3632056	270	0	-90	40	145	2	11	64	58	5
Pipeline	26-DPPLE-041	0.16	1.52 - 3.72	2.19	714686	3632102	271	0	-90	59	222	4	21	131	153	16
Pipeline	26-DPPLE-042	0.68	1.52 - 6.1	4.57	714633	3632014	269	0	-90	408	1,474	9	32	118	738	22
Pipeline	26-DPPLE-043	1.89	2.13 - 6.4	4.27	714627	3632015	269	0	-90	1,117	3,887	27	87	309	1,136	58

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Pipeline	26-DPPLE-044	0.12	1.52 - 4.57	3.05	714623	3632013	268	0	-90	69	248	4	17	85	81	14
Pipeline	26-DPPLE-045	0.06	0 - 3.05	3.05	714626	3632009	268	0	-90	41	130	1	7	33	42	7
Pipeline	26-DPPLE-046	0.12	3.05 - 4.57	1.52	714620	3632009	268	0	-90	77	282	4	19	97	47	10
Pipeline	26-DPPLE-047	0.1	3.05 - 5.49	2.44	714619	3632012	268	0	-90	65	258	5	24	132	56	16
Pipeline	26-DPPLE-048	0.07	0 - 2.29	2.29	714626	3632018	269	0	-90	35	119	2	9	48	74	8
Pipeline	26-DPPLE-049	0.1	0 - 1.52	1.52	714631	3632019	269	0	-90	45	156	2	8	31	82	9
Pipeline	26-DPPLE-050	0.06	0 - 3.66	3.66	714631	3632021	269	0	-90	29	100	1	6	29	80	7
Pipeline	26-DPPLE-051	1.63	0.79 - 3.05	2.26	714619	3632020	268	0	-90	960	3,117	19	62	202	2,066	48
Pipeline	26-DPPLE-052	0.54	0 - 1.52	1.52	714610	3632020	268	0	-90	296	1,030	7	25	85	924	28
Pipeline	26-DPPLE-053	0.06	0 - 2.13	2.13	714611	3632012	268	0	-90	25	90	1	5	26	89	9
Pipeline	26-DPPLE-054	0.14	0 - 0.85	0.85	714598	3632018	268	0	-90	61	213	2	6	27	221	10
Pig Trail	26-DPPT-001	0.18	3.5 - 7.62	4.12	717859	3630360	266	0	-90	93	354	8	46	235	113	27
Pig Trail	26-DPPT-002	0.11	1.52 - 2.41	0.88	717879	3630360	266	0	-90	26	96	3	23	147	111	15
Pig Trail	26-DPPT-003	0.16	4.57 - 7.57	3	717898	3630361	265	0	-90	80	284	5	28	161	98	15
Pig Trail	26-DPPT-004	0.12	1.4 - 4.57	3.17	717918	3630360	266	0	-90	56	205	5	29	160	85	19
Pig Trail	26-DPPT-005	0.11	5.15 - 6.83	1.68	717938	3630360	266	0	-90	56	204	6	32	167	70	16
Pig Trail	26-DPPT-006	0.05	0 - 7.32	7.32	717958	3630359	265	0	-90	24	88	3	16	92	32	16
Pig Trail	26-DPPT-007	0.05	0 - 3.05	3.05	717978	3630360	264	0	-90	21	78	2	10	60	31	13
Pig Trail	26-DPPT-008	0.12	0 - 5.64	5.64	717999	3630359	261	0	-90	57	220	7	40	257	50	35
Pig Trail	26-DPPT-009	0.12	0.76 - 7.32	6.55	717999	3630378	263	0	-90	62	234	4	24	130	74	25
Pig Trail	26-DPPT-010	0.1	3.05 - 4.57	1.52	717979	3630379	265	0	-90	50	193	5	30	186	41	30
Pig Trail	26-DPPT-010	0.14	8.14 - 8.53	0.4	717979	3630379	265	0	-90	72	275	4	22	108	105	25
Pig Trail	26-DPPT-011	0.18	4.57 - 6.1	1.52	717958	3630378	266	0	-90	90	337	7	36	204	123	21
Pig Trail	26-DPPT-012	0.1	0 - 1.37	1.37	717938	3630379	266	0	-90	47	172	4	21	130	81	20
Pig Trail	26-DPPT-013	6.38	6.89 - 7.01	0.12	717919	3630379	265	0	-90	3,673	10,183	103	397	1,441	5,000	156
Pig Trail	26-DPPT-014	0.07	0 - 7.32	7.32	717928	3630379	265	0	-90	30	106	3	19	116	34	15
Pig Trail	26-DPPT-015	0.06	0 - 5.79	5.79	717909	3630379	264	0	-90	27	96	3	16	93	35	17
Pig Trail	26-DPPT-016	0.05	0 - 4.57	4.57	717901	3630379	264	0	-90	20	71	2	12	73	27	15
Pig Trail	26-DPPT-017	0.15	3.29 - 3.84	0.55	717878	3630379	264	0	-90	83	290	4	18	71	121	12

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Pig Trail	26-DPPT-018	0.16	3.26 - 6.1	2.83	717858	3630379	264	0	-90	88	341	5	29	152	89	11
Pig Trail	26-DPPT-019	0.11	6.77 - 7.01	0.24	717837	3630378	265	0	-90	60	225	4	20	118	131	9
Pig Trail	26-DPPT-020	0.2	3.05 - 5.69	2.64	717817	3630402	264	0	-90	114	449	7	32	162	101	8
Pig Trail	26-DPPT-021	0.15	2.59 - 6.04	3.45	717837	3630400	264	0	-90	80	309	4	23	117	87	15
Pig Trail	26-DPPT-022	0.06	0 - 4.42	4.42	717857	3630400	262	0	-90	31	121	3	19	111	23	22
Pig Trail	26-DPPT-023	0.06	0 - 7.16	7.16	717879	3630399	262	0	-90	28	101	2	13	73	41	27
Pig Trail	26-DPPT-024	0.24	0 - 1.07	1.07	717899	3630398	263	0	-90	129	458	5	26	116	217	20
Pig Trail	26-DPPT-025	0.31	3.05 - 4.88	1.83	717918	3630399	265	0	-90	164	597	7	35	170	339	37
Pig Trail	26-DPPT-026	0.76	2.74 - 3.05	0.31	717937	3630400	266	0	-90	451	1,639	11	39	141	832	64
Pig Trail	26-DPPT-027	0.15	0 - 1.52	1.52	717909	3630399	264	0	-90	78	279	4	21	115	121	17
Pig Trail	26-DPPT-028	0.1	0.88 - 1.52	0.64	717928	3630399	266	0	-90	53	192	3	15	67	71	13
Pig Trail	26-DPPT-029	0.12	0.91 - 1.74	0.82	717947	3630401	266	0	-90	54	207	5	28	158	84	22
Pig Trail	26-DPPT-029	0.12	3.96 - 7.01	3.05	717947	3630401	266	0	-90	57	219	5	30	180	89	23
Pig Trail	26-DPPT-030	0.14	1.31 - 4.57	3.26	717958	3630399	266	0	-90	64	253	5	29	172	64	15
Pig Trail	26-DPPT-031	0.17	0 - 8.38	8.38	717978	3630399	265	0	-90	88	358	6	34	187	47	12
Pig Trail	26-DPPT-032	0.05	0 - 7.16	7.16	717997	3630400	264	0	-90	28	102	2	11	62	37	10
Pig Trail	26-DPPT-033	0.19	1.52 - 6.1	4.57	717998	3630419	263	0	-90	113	434	7	36	207	56	5
Pig Trail	26-DPPT-034	0.16	2.01 - 7.01	5	717978	3630418	265	0	-90	86	330	6	32	182	57	12
Pig Trail	26-DPPT-035	0.17	1.34 - 7.16	5.82	717957	3630419	266	0	-90	84	318	5	27	156	72	7
Pig Trail	26-DPPT-036	0.18	0 - 7.01	7.01	717937	3630419	266	0	-90	94	350	6	35	209	94	24
Pig Trail	26-DPPT-037	0.33	3.05 - 4.57	1.52	717918	3630420	265	0	-90	191	666	8	40	207	269	60
Pig Trail	26-DPPT-038	0.1	4.48 - 5.64	1.16	717898	3630419	263	0	-90	39	146	5	32	236	36	30
Pig Trail	26-DPPT-039	0.12	1.34 - 5.49	4.14	717879	3630418	261	0	-90	61	225	4	23	131	66	16
Pig Trail	26-DPPT-040	0.1	0 - 1.77	1.77	717857	3630418	260	0	-90	44	155	3	18	117	63	17
Pig Trail	26-DPPT-041	0.05	0 - 3.05	3.05	717838	3630419	262	0	-90	27	94	3	15	89	23	21
Pig Trail	26-DPPT-042	0.18	0 - 3.05	3.05	717818	3630420	262	0	-90	112	405	7	32	124	80	10
Pig Trail	26-DPPT-043	0.06	0 - 5.33	5.33	717817	3630437	261	0	-90	24	92	3	20	130	27	16
Pig Trail	26-DPPT-044	0.17	6.1 - 6.86	0.76	717835	3630435	261	0	-90	88	303	5	29	170	130	22
Pig Trail	26-DPPT-045	0.14	0 - 1.83	1.83	717855	3630443	258	0	-90	70	236	4	21	110	104	12

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Pig Trail	26-DPPT-046	0.19	0.61 - 4.88	4.27	717878	3630441	260	0	-90	100	349	7	36	196	120	21
Pig Trail	26-DPPT-047	0.13	3.05 - 6.71	3.66	717897	3630440	263	0	-90	67	233	4	23	137	100	26
Pig Trail	26-DPPT-048	0.16	0 - 7.01	7.01	717921	3630441	265	0	-90	83	300	5	27	148	70	12
Pig Trail	26-DPPT-049	0.19	0 - 8.53	8.53	717938	3630440	265	0	-90	109	382	7	36	200	69	9
Pig Trail	26-DPPT-050	0.15	1.52 - 3.96	2.44	717960	3630442	265	0	-90	81	312	4	23	105	42	2
Pig Trail	26-DPPT-051	0.15	1.52 - 5.49	3.96	717979	3630440	263	0	-90	77	317	4	24	128	42	1
Pig Trail	26-DPPT-052	0.15	0 - 6.71	6.71	717999	3630440	262	0	-90	74	299	7	36	210	73	15
Pig Trail	26-DPPT-053	0.13	0 - 5.03	5.03	717938	3630461	264	0	-90	65	266	4	19	112	68	5
Pig Trail	26-DPPT-054	0.14	0 - 2.74	2.74	717917	3630460	263	0	-90	69	280	4	18	80	82	4
Pig Trail	26-DPPT-055	0.15	0 - 3.81	3.81	717898	3630459	262	0	-90	80	323	5	26	133	55	13
Pig Trail	26-DPPT-056	0.15	0 - 3.05	3.05	717876	3630459	259	0	-90	79	320	6	34	184	71	16
Pig Trail	26-DPPT-057	0.16	4.57 - 6.77	2.2	717857	3630461	256	0	-90	81	294	5	23	133	110	13
Pig Trail	26-DPPT-058	0.15	0 - 2.1	2.1	717843	3630455	258	0	-90	80	294	4	21	97	54	30
Pig Trail	26-DPPT-059	0.16	0 - 4.57	4.57	717877	3630475	257	0	-90	85	315	6	31	167	101	14
Pig Trail	26-DPPT-060	0.14	0 - 3.66	3.66	717898	3630477	258	0	-90	70	266	5	28	168	68	9
Pig Trail	26-DPPT-061	0.04	0 - 8.38	8.38	718123	3630366	260	0	-90	18	66	1	8	50	16	11
Pig Trail	26-DPPT-062	0.06	0 - 5.94	5.94	718144	3630368	261	0	-90	29	106	2	12	67	37	11
Pig Trail	26-DPPT-063	0.04	0 - 5.49	5.49	718162	3630370	260	0	-90	19	70	2	12	79	19	20
Pig Trail	26-DPPT-064	0.22	5.7 - 6.71	1.01	718177	3630369	260	0	-90	109	426	10	56	399	111	33
Pig Trail	26-DPPT-065	0.05	0 - 10.21	10.21	718180	3630386	259	0	-90	25	89	2	11	62	38	17
Pig Trail	26-DPPT-066	0.05	0 - 9.45	9.45	718162	3630386	258	0	-90	23	85	2	13	92	34	16
Pig Trail	26-DPPT-067	0.16	1.86 - 4.18	2.32	718142	3630389	258	0	-90	80	309	7	38	280	105	22
Pig Trail	26-DPPT-067	0.19	6.22 - 6.71	0.49	718142	3630389	258	0	-90	96	359	5	28	183	143	21
Pig Trail	26-DPPT-068	0.21	4.57 - 5.94	1.37	718128	3630383	258	0	-90	86	333	11	62	480	139	31
Pig Trail	26-DPPT-069	0.15	5.39 - 6.1	0.7	718104	3630388	254	0	-90	74	281	6	31	183	101	67
Pig Trail	26-DPPT-070	0.3	6.22 - 7.16	0.95	718103	3630370	256	0	-90	154	543	6	31	164	411	63
Pig Trail	26-DPPT-071	0.11	3.41 - 6.1	2.68	718106	3630408	253	0	-90	51	190	3	18	106	57	6
Pig Trail	26-DPPT-072	0.12	3.9 - 7.92	4.02	718103	3630424	252	0	-90	60	230	3	18	101	46	7
Pig Trail	26-DPPT-073	0.11	4.02 - 8.08	4.05	718107	3630444	252	0	-90	52	201	3	17	99	32	11

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Pig Trail	26-DPPT-074	0.11	1.52 - 5.94	4.42	718122	3630448	252	0	-90	61	233	3	16	94	54	7
Pig Trail	26-DPPT-075	0.05	0 - 7.01	7.01	718124	3630466	250	0	-90	26	94	2	9	55	46	10
Pig Trail	26-DPPT-076	0.06	0 - 7.32	7.32	718142	3630488	250	0	-90	31	113	2	11	71	50	9
Pig Trail	26-DPPT-077	0.11	3.29 - 5.33	2.04	718122	3630485	250	0	-90	57	219	3	16	87	42	5
Pig Trail	26-DPPT-078	0.06	0 - 5.64	5.64	718103	3630488	252	0	-90	32	114	2	12	69	54	13
Pig Trail	26-DPPT-079	0.11	2.16 - 3.05	0.88	718103	3630465	251	0	-90	60	234	3	18	103	38	6
Pig Trail	26-DPPT-080	0.11	6.4 - 7.16	0.76	717887	3630205	271	0	-90	59	236	5	30	164	21	34
Pig Trail	26-DPPT-080	0.13	3.99 - 4.66	0.67	717887	3630205	271	0	-90	62	228	5	25	132	64	26
Pig Trail	26-DPPT-081	0.12	6.71 - 7.32	0.61	717831	3630282	267	0	-90	94	362	6	31	131	13	13
Pig Trail	26-DPPT-082	0.04	0 - 6.71	6.71	717759	3630362	262	0	-90	16	59	2	11	66	17	29
Pig Trail	26-DPPT-083	0.05	0 - 5.56	5.56	717899	3630349	266	0	-90	22	81	2	14	84	27	13
Pig Trail	26-DPPT-084	0.04	0 - 5.64	5.64	717964	3630268	264	0	-90	24	95	2	12	71	12	13
Pig Trail	26-DPPT-085	0.1	6.1 - 6.78	0.69	718027	3630197	269	0	-90	23	87	9	62	474	18	14
Pig Trail	26-DPPT-086	0.21	1.22 - 2.96	1.74	718106	3630258	264	0	-90	97	351	7	41	251	160	32
Pig Trail	26-DPPT-087	0.06	0 - 5.18	5.18	718042	3630334	258	0	-90	28	101	3	14	89	40	14
Pig Trail	26-DPPT-088	0.15	0 - 2.29	2.29	717915	3630489	259	0	-90	101	384	6	29	162	78	8
Pig Trail	26-DPPT-089	0.19	0 - 5.33	5.33	718057	3630477	257	0	-90	105	423	8	44	249	55	19
Pig Trail	26-DPPT-090	0.15	1.34 - 2.44	1.1	718176	3630315	261	0	-90	71	278	5	28	147	71	7
Pig Trail	26-DPPT-091	0.13	4.57 - 6.1	1.52	718199	3630461	256	0	-90	75	301	5	24	124	83	14
Pig Trail	26-DPPT-101	0.05	0 - 6.86	6.86	718212	3630369	259	0	-90	22	86	2	8	49	32	11
Pig Trail	26-DPPT-102	0.05	0 - 8.53	8.53	718222	3630359	256	0	-90	23	88	2	9	52	32	10
Pig Trail	26-DPPT-103	0.19	4.63 - 5.49	0.85	718241	3630363	251	0	-90	89	350	7	38	211	145	34
Pig Trail	26-DPPT-104	0.1	0.55 - 1.86	1.31	718260	3630364	249	0	-90	46	185	4	20	123	52	11
Pig Trail	26-DPPT-105	0.11	1.43 - 3.05	1.61	718260	3630386	250	0	-90	53	208	4	22	115	71	19
Pig Trail	26-DPPT-106	0.15	0 - 4.97	4.97	718244	3630386	253	0	-90	93	346	5	23	122	54	9
Pig Trail	26-DPPT-107	0.11	2.8 - 3.96	1.16	718647	3630199	261	0	-90	66	248	4	19	118	23	25
Pig Trail	26-DPPT-108	0.09	0 - 1.22	1.22	718604	3630277	263	0	-90	44	151	3	14	86	63	14
Pig Trail	26-DPPT-109	0.14	1.52 - 4.57	3.05	718545	3630496	249	0	-90	83	309	5	25	132	58	5
Pig Trail	26-DPPT-110	0.04	0 - 7.32	7.32	718619	3630555	241	0	-90	16	59	2	9	58	13	16

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com


Pig Trail	26-DPPT-111	0.04	0 - 5.18	5.18	718694	3630616	239	0	-90	20	75	2	10	57	16	3
Pig Trail	26-DPPT-112	0.07	0 - 2.44	2.44	718414	3630503	244	0	-90	37	129	3	13	74	51	9
Pig Trail	26-DPPT-113	0.13	2.83 - 4.57	1.74	718337	3630450	244	0	-90	66	239	4	23	140	63	23
Pig Trail	26-DPPT-114	0.06	0 - 5.79	5.79	718476	3630431	247	0	-90	29	98	2	9	51	52	9
Pig Trail	26-DPPT-115	0.15	1.83 - 2.44	0.61	718245	3630242	260	0	-90	81	309	5	27	141	34	15
Pig Trail	26-DPPT-116	0.06	0 - 5.18	5.18	718322	3630304	258	0	-90	30	110	2	12	68	35	13
Pig Trail	26-DPPT-117	0.06	0 - 7.62	7.62	718401	3630369	252	0	-90	29	105	2	13	69	48	8
Pig Trail	26-DPPT-118	0.05	0 - 5.79	5.79	718540	3630356	253	0	-90	25	91	2	8	44	45	8
Pig Trail	26-DPPT-119	0.13	1.46 - 4.27	2.8	718463	3630291	259	0	-90	77	274	4	20	87	79	9
Pig Trail	26-DPPT-120	0.18	2.04 - 4.27	2.23	718386	3630224	265	0	-90	106	420	6	31	140	27	5
Pig Trail	26-DPPT-121	0.07	0 - 2.74	2.74	718528	3630213	259	0	-90	37	138	3	17	92	31	7
Pig Trail	26-DPPTN-001	0.83	1.04 - 3.38	2.35	718491	3630910	250	0	-90	469	1,676	16	55	181	906	61
Pig Trail	26-DPPTN-002	0.16	0 - 1.52	1.52	718484	3630891	247	0	-90	95	341	4	17	79	121	15
Pig Trail	26-DPPTN-003	0.32	0 - 2.5	2.5	718478	3630877	246	0	-90	197	680	8	33	150	250	21
Pig Trail	26-DPPTN-004	0.2	0 - 2.41	2.41	718476	3630863	244	0	-90	102	345	4	17	84	186	16
Pig Trail	26-DPPTN-005	0.15	0 - 3.96	3.96	718480	3630864	245	0	-90	72	252	4	17	96	129	12
Pig Trail	26-DPPTN-006	0.14	1.52 - 5.18	3.66	718485	3630900	248	0	-90	83	290	4	22	122	71	12
Pig Trail	26-DPPTN-007	0.53	0 - 3.11	3.11	718469	3630871	245	0	-90	300	1,021	9	36	151	453	32
Lazer Creek	26-SRLC-001	0.26	5.79 - 9.14	3.35	719044	3634163	229	0	-90	140	470	4	18	93	220	11
Lazer Creek	26-SRLC-002	0.43	3.84 - 7.92	4.08	719044	3634159	230	0	-90	244	793	7	31	162	300	16
Lazer Creek	26-SRLC-003	0.5	2.68 - 3.66	0.98	719045	3634154	230	0	-90	303	972	8	35	180	591	22
Lazer Creek	26-SRLC-004	0.21	3.81 - 5.27	1.46	719066	3634151	232	0	-90	110	370	5	28	182	154	13
Lazer Creek	26-SRLC-004	0.67	7.86 - 8.23	0.37	719066	3634151	232	0	-90	425	1,371	9	39	198	471	69
Lazer Creek	26-SRLC-005	0.07	0 - 8.23	8.23	719098	3634154	235	0	-90	34	113	2	8	47	49	7
Lazer Creek	26-SRLC-006	0.18	6.1 - 7.01	0.91	719100	3634173	235	0	-90	111	371	4	19	100	90	8
Lazer Creek	26-SRLC-007	0.06	0 - 5.03	5.03	719086	3634170	234	0	-90	29	99	2	10	56	44	7
Lazer Creek	26-SRLC-008	0.18	6.8 - 10.97	4.18	719078	3634147	233	0	-90	85	281	3	14	84	129	10

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Figures

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Figure 4 – Pipeline Rock Chip Sample Locations

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Figure 5 – Newbill Rock Chip Sample Location

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Figure 6 – Lazer Creek Drill Hole Locations

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Figure 7 – Lazer Creek Drill Hole Locations

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Figure 8 – Pig Trail Drill Hole Locations

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Figure 9 – Pig Trail Drill Hole Locations

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Figure 10 – Pipeline Drill Hole Locations

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Figure 11 – Pipeline Drill Hole Locations

Rare Earths Americas | 101 W. Main Street, Manchester, GA 31816 | RE-Americas@icrinc.com

Form: 8-K

Documents
